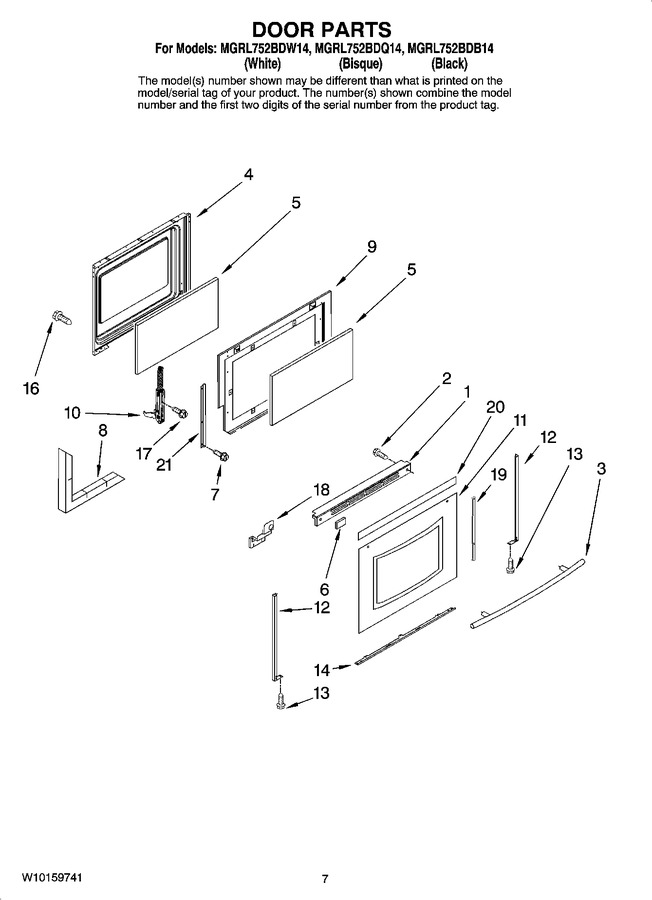

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74009689 | Trim, Top (black) |
|
- | |||||
| 1 | 74009690 | Trim, Top (white) |
|
- | |||||
| 1 | 74009691 | Trim, Top (bisque) |
|
- | |||||
| 2 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 13.25 | ||||
| 3 | 74011777 | Handle, Door (black) |
|
$ 220.82 | |||||
| 3 | WP74011675 | Handle, Door (white) (Replaces: 74011675) |
|
$ 238.29 | |||||
| 3 | 74011779 | Handle, Door (bisque) |
|
- | |||||
| 4 | 74011456 | Liner, Door |
|
- | |||||
| 5 | 74003645 | Glass, Inner (2) |
|
Immediately | $ 201.23 | ||||
| 6 | WP74004224 | Tape, White (Replaces: 74004224) |
|
$ 11.06 | |||||
| 7 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 13.25 | ||||
| 8 | 74003647 | Insulation,door |
|
- | |||||
| 9 | 3601F373-51 | Retainer,baffle Insulation (Replaces: 74011457) |
|
$ 256.44 | |||||
| 10 | 74010546 | Hinge, Door |
|
Immediately | $ 80.95 | ||||
| 11 | 12002397 | Glass, Outer Door (bisque) |
|
$ 300.03 | |||||
| 11 | 12002396 | Glass, Outer Door (white) |
|
$ 193.14 | |||||
| 11 | 12002395 | Glass, Outer Door (black) |
|
$ 164.64 | |||||
| 12 | WP3608F116-71 | Trim, Door Side (white,rh) (Replaces: 74009694) |
|
$ 117.61 | |||||
| 12 | 74009693 | Trim, Door Side (black,lh) |
|
- | |||||
| 12 | WP3608F117-71 | Trim, Door Side (white,lh) (Replaces: 74009695) |
|
$ 117.00 | |||||
| 12 | 74009697 | Trim, Door Side (bisque,lh) |
|
- | |||||
| 12 | 74009692 | Trim, Door Side (black, Rh) |
|
- | |||||
| 12 | 74009696 | Trim, Door Side (bisque,rh) |
|
- | |||||
| 13 | WP7101P126-60 | Screw (Replaces: 7101P356-60) |
|
Immediately | $ 7.52 | ||||
| 14 | 74009688 | Trim, Lower Door (bisque) |
|
- | |||||
| 14 | WP3807F708-71 | Trim, Lower Door (white) (Replaces: 74009687) |
|
$ 152.07 | |||||
| 14 | 74009686 | Trim, Lower Door (black) |
|
- | |||||
| 16 | W11233072 | Screw (Replaces: 74001530) |
|
Immediately | $ 13.25 | ||||
| 17 | WP4159193 | Screw (Replaces: 7101P282-60) |
|
$ 4.56 | |||||
| 18 | 3801F832-45 | Bracket, Handle (left) (Replaces: 74009699) |
|
$ 20.07 | |||||
| 18 | 3801F831-45 | Bracket, Handle (right) (Replaces: 74009698) |
|
$ 20.13 | |||||
| 19 | 7101P208-60 | Screw |
|
$ 11.92 | |||||
| 19 | 74010267 | Spacer, Rubber |
|
$ 8.34 | |||||
| 19 | 74003650 | Retainer, Glass |
|
- | |||||
| 20 | 74003664 | Tape, Foil (3``) |
|
- | |||||
| 21 | 74011458 | Bracket, Window(2) |
|
- |
