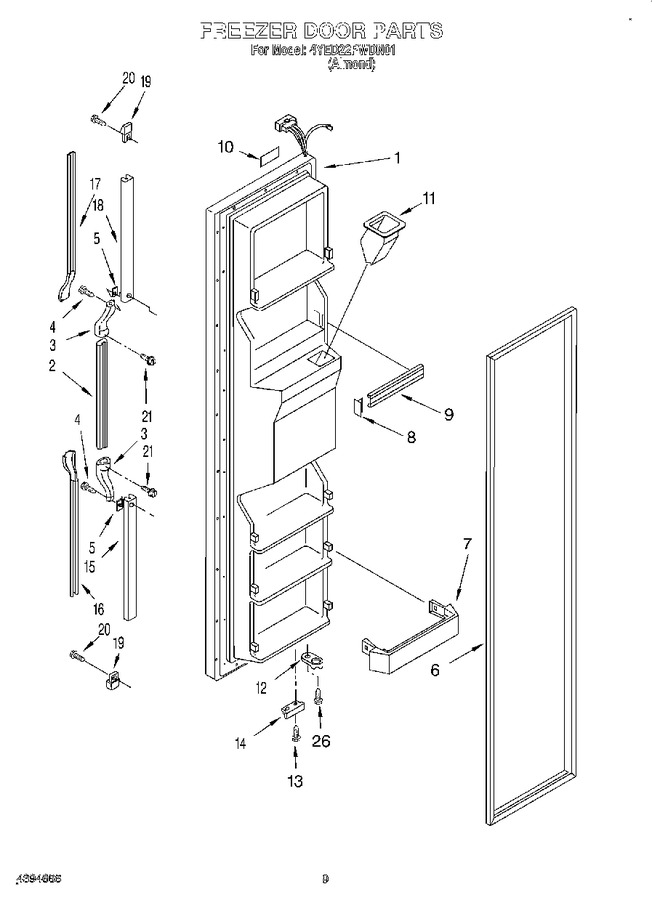

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2197800N		Freezer Door (includes No.6 And Dispenser Front Parts)		Appelez-nous	-
2	2194767N		Handle, Center		Appelez-nous	-
3	1119359		End Cap (2)		Appelez-nous	-
4	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
5	935075		Shim, End Cap (2)		Appelez-nous	-
6	2159072		Door Gasket, Magnetic (service)				$ 291.24
7	2156017		Trivet, Door Shelf (4)		Appelez-nous	-
8	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195925)			Immediately	$ 21.84
10	2175384		Nameplate		Appelez-nous	-
11	2156146		Chute, Ice		Appelez-nous	-
12	4318165		Door Closer, Upper Cam   (Replaces: 2182132)			Immediately	$ 26.77
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2195950		Bracket, Door Stop				$ 5.84
15	2194770		Retainer, Insert		Appelez-nous	-
16	2194773N		Insert, Handle		Appelez-nous	-
17	2194774N		Insert, Handle		Appelez-nous	-
18	2194771		Retainer, Insert		Appelez-nous	-
19	2156220		End Cap (2)		Appelez-nous	-
20	489075		Screw		Appelez-nous	-
21	489022		Screw		Appelez-nous	-
26	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
