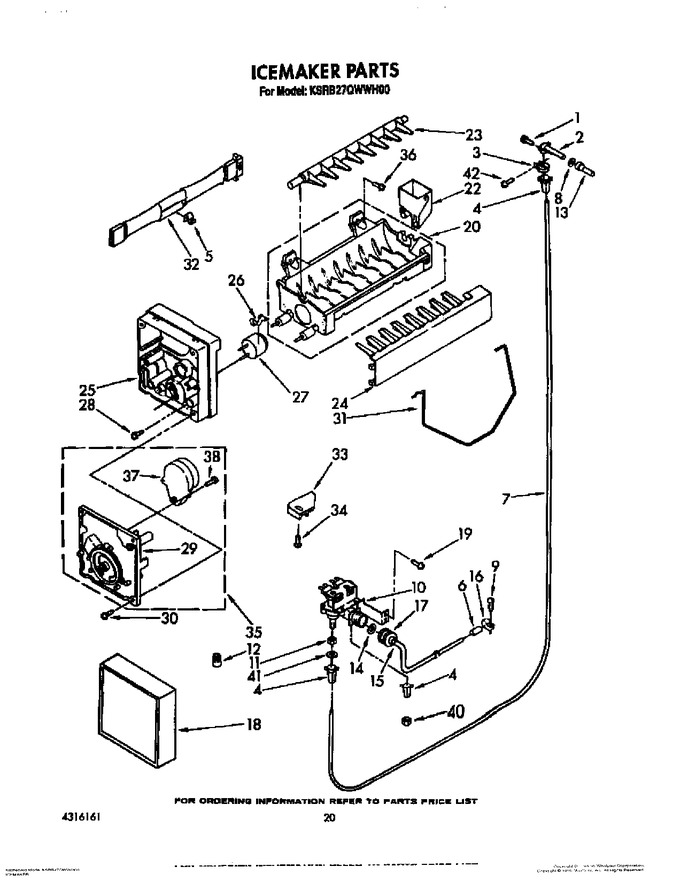

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.25
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 11.33
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 10.96
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.41
5	WP628379		Clip, Fuse   (Replaces: 628288)				$ 9.99
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.64
7	W10823511		Tube, Water   (Replaces: 653415)			Immediately	$ 29.17
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.39
9	486214		Screw, 8 X 1/2		Appelez-nous	-
10	4318046		Valve, Solenoid   (Replaces: 628295)			Immediately	$ 83.58
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.36
12	227991		Connector Wire		Appelez-nous	-
13	1114645		Tube, Water Inlet		Appelez-nous	-
14	WP16123		Washer   (Replaces: 488292)				$ 7.34
15	627860		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	628355		Cover		Appelez-nous	-
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 20.00
20	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: 628228)				$ 210.17
22	WP628356		Bearing & Inlet   (Replaces: 627791)				$ 48.38
23	WP627843		Ejector   (Replaces: 627843)				$ 79.00
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 81.32
25	WP2195914		Support   (Replaces: 627790)				$ 98.82
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 10.44
27	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)				$ 103.18
28	8533917		Screw   (Replaces: 489322)				$ 12.64
29	W10190935		Module Assembly   (Replaces: 628332)			Immediately	$ 122.65
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
31	W11807379		Shut Off Arm   (Replaces: 628187)			Immediately	$ 56.89
32	WP2187464		Harness, Wiring   (Replaces: 628256)				$ 117.72
33	W11500948		Bracket   (Replaces: 628229)			Immediately	$ 30.40
34	489365		Screw, 8-32 X 27/64		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 29, 37 & 38)   (Replaces: 483105)			Immediately	$ 122.65
36	WP488163		Screw (2)   (Replaces: 488208)				$ 7.13
37	W10190935		Motor   (Replaces: 628302)			Immediately	$ 122.65
38	489136		Screw (3-24 X 23/64)				$ 9.72
40	488795		Nut, Compression		Appelez-nous	-
41	00753257		``o`` Ring   (Replaces: 488819)			Immediately	$ 265.94
42	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.13
100	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
100	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
100	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
100	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
100	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
100	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
100	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
100	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
100	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
100	4317943		Complete Icemaker Assembly   (Replaces: 4211173)			Immediately	$ 165.11
100	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
100	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
100	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
100	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
100	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
100	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 218.83
100	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
100	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
100	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
100	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
100	833938		Kit, Terminal Connector				$ 7.62
100	515393		Transformer (115-230 Volt)		Appelez-nous	-
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT1126117		Energy Label		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT1125643		Service & Wiring Sheet		Appelez-nous	-
	LIT1126116		Label, Use & Care Guide		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 84.73
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
	LIT4316161		Parts List		Appelez-nous	-
