SELECT A DIAGRAM
New Model Search:

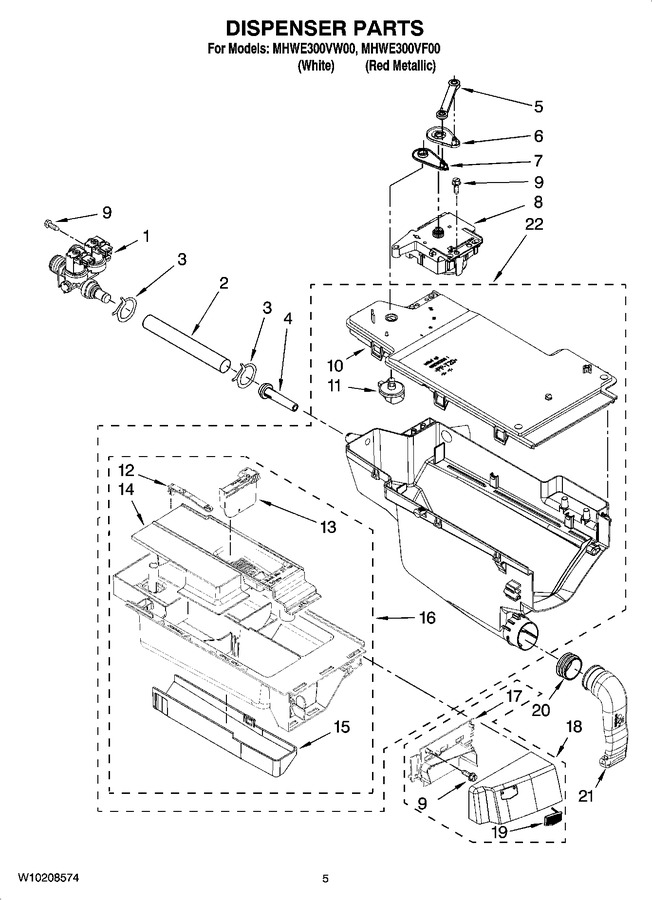

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP8540751 | Valve, Inlet (Replaces: 8540751) |
|
Immediately | $ 68.99 | ||||
| 2 | W10803052 | Hose - Valve/ Dispenser (Replaces: 8540065) |
|
$ 12.96 | |||||
| 3 | WP596669 | Clamp (Replaces: 370450) |
|
Immediately | $ 7.94 | ||||
| 4 | WP8183181 | Nozzle, Inlet (Replaces: 8540042) |
|
$ 85.34 | |||||
| 5 | WP8183183 | Lever, Connection (Replaces: W10003830) |
|
$ 85.27 | |||||
| 6 | WP8183184 | Cam, Actuator (Replaces: W10003190) |
|
$ 85.27 | |||||
| 7 | WPW10161052 | Lever, Water Distribution (Replaces: W10003180) |
|
Immediately | $ 6.80 | ||||
| 8 | WPW10352973 | Actuator (Replaces: W10163975) |
|
Immediately | $ 150.08 | ||||
| 9 | WP8540282 | Screw (Replaces: 8540282) |
|
$ 10.93 | |||||
| 10 | W10005080 | Plate, Distribution |
|
- | |||||
| 11 | WP8181712 | Nozzle, Distribution (Replaces: W10003110) |
|
$ 84.21 | |||||
| 12 | W10003170 | Hook, Drawer |
|
- | |||||
| 13 | WPW10121596 | Separator, With Selection Slider (Replaces: W10015200) |
|
$ 69.05 | |||||
| 14 | W10003150 | Siphon, Bleach/softener |
|
- | |||||
| 15 | W10003140 | Cover, Detergent Drawer |
|
$ 80.92 | |||||
| 16 | WPW10015190 | Drawer, Detergent (complete) (Replaces: W10015190) |
|
$ 110.57 | |||||
| 17 | W10153277 | Bracket, Handle Fixation (white) |
|
$ 98.40 | |||||
| 17 | W10190550 | Bracket, Handle Fixation (red) |
|
$ 109.62 | |||||
| 18 | W10189238 | Handle, Drawer (white) |
|
$ 84.18 | |||||
| 18 | WPW10294302 | Handle, Drawer (red) (Replaces: W10189239) |
|
$ 133.67 | |||||
| 19 | W10732500 | Medallion (Replaces: W10177245) |
|
$ 40.89 | |||||
| 20 | WP8181747 | Seal (Replaces: W10003360) |
|
Immediately | $ 24.60 | ||||
| 21 | WPW10005300 | Tube, Dispenser To Bellow (Replaces: W10005300) |
|
Immediately | $ 20.03 | ||||
| 22 | W10074160 | Dispenser, Complete (includes Item 7) |
|
- |
