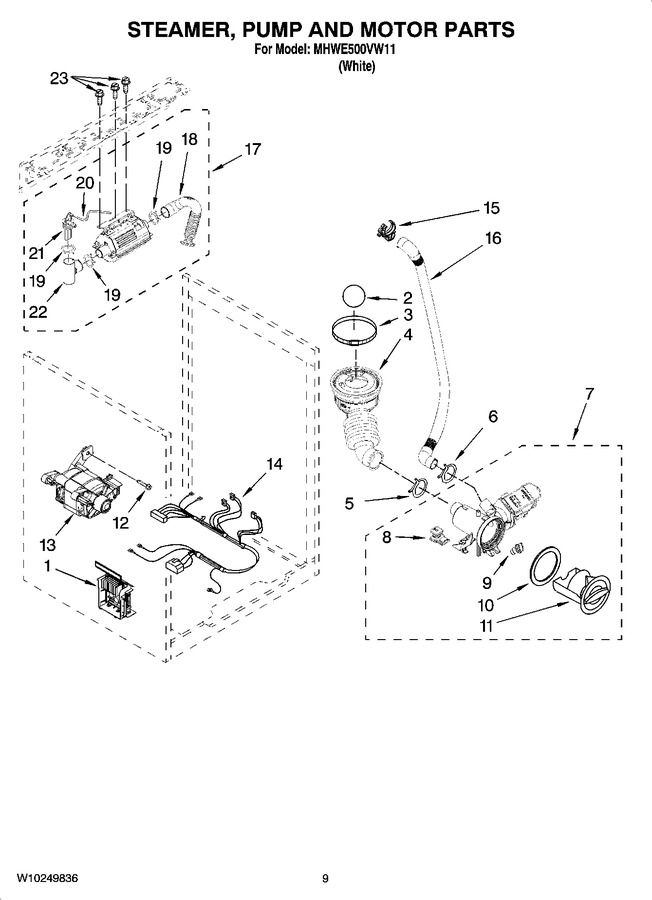

06 - Steamer, Pump And Motor Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP8183196		Motor Control Unit   (Replaces: 8183196)			Immediately	$ 449.79
2	W10121657		Ball				$ 18.93
3	WP696392		Clamp   (Replaces: 8181734)				$ 8.17
4	WPW10467168		Hose, Tub To Pump   (Replaces: 8181732)			Immediately	$ 36.21
5	WP285655		Clamp   (Replaces: 8181753)			Immediately	$ 7.93
6	WP3367052		Clamp   (Replaces: 8181752)				$ 8.19
7	280187		Pump (complete)   (Replaces: 8182821)			Immediately	$ 210.54
8	8182820		Grommet, Damper (rear)		Appelez-nous	-
9	WPW10526202		Grommet, Damper (front)   (Replaces: 8182816)				$ 15.34
10	8181736		Seal, Filter Cap				$ 36.51
11	8183027		Cap, Filter (includes Item 10)				$ 28.31
12	W10128585		Bolt, Motor				$ 6.51
13	8182793		Motor				$ 323.53
14	WPW10189680		Harness, Motor (includes Item 23 On Page 1)   (Replaces: W10189680)				$ 157.82
15	8182209		Retainer, Drain Hose				$ 19.44
16	WPW10003250		Drain Hose (inner)   (Replaces: 8181740)			Immediately	$ 32.94
17	W10157910		Steamer, Complete Assembly (includes Item 20 On Page 7)		Appelez-nous	-
18	W10156132		Hose, Steamer/tub				$ 78.62
19	WP285655		Clamp, Hose (3)   (Replaces: W10156063)			Immediately	$ 7.93
20	W10156133		Hose, Overflow				$ 80.37
21	W10156250		Cap, Siphon				$ 81.34
22	W10156251		Tank, Siphon				$ 73.71
23	WP488729		Screw, 4.2 X 11   (Replaces: 8181828)			Immediately	$ 7.45
NI	W10135699		Affresh Odor Remover			Immediately	$ 20.71
NI	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
NI	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 36.11
NI	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
NI	285863		Drain Extension			Immediately	$ 30.65
NI	4396899		Rear Guard		Appelez-nous	-
NI	38005		Stack Kit				$ 42.57
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
