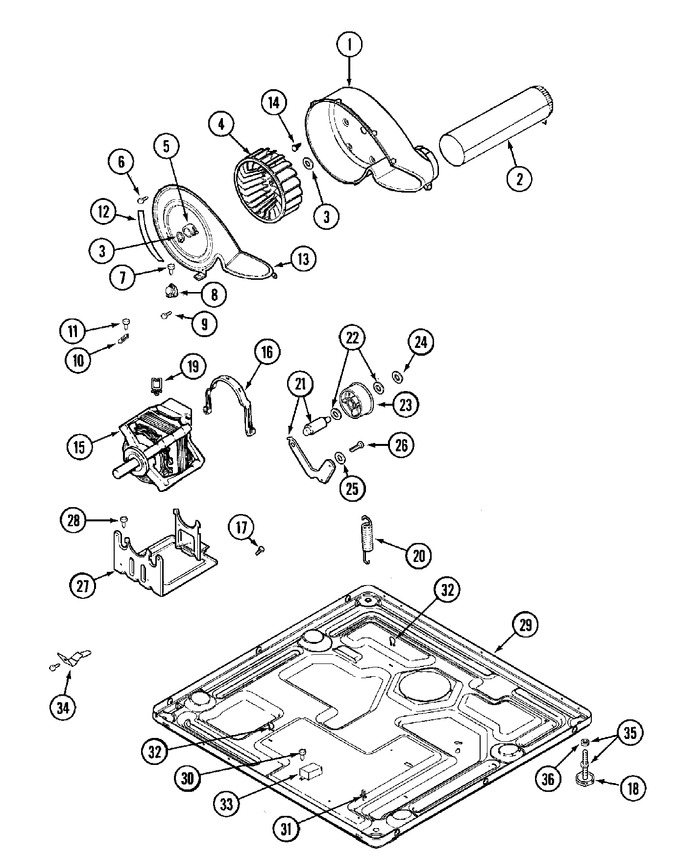

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP33001789 | Housing, Blower (Replaces: 33001789) |
|
$ 134.40 | |||||
| 002 | W11573574 | Screw (Replaces: 22001995) |
|
Immediately | $ 13.25 | ||||
| 002 | 33001799 | Outlet Duct Assembly |
|
$ 81.40 | |||||
| 003 | WP9703438 | Ring, Retaining (Replaces: 410233) |
|
Immediately | $ 4.14 | ||||
| 004 | 33001790 | Wheel, Blower |
|
Immediately | $ 44.73 | ||||
| 004 | WP33002797 | Wheel, Blower (Replaces: 33002797) | 68 |
|
Immediately | $ 140.18 | |||
| 005 | WP312967 | Clamp, Blower Housing (Replaces: 312967) |
|
Immediately | $ 11.21 | ||||
| 006 | WP33002917 | Screw (hex Head) (Replaces: 33001855) |
|
Immediately | $ 7.63 | ||||
| 007 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 008 | WP694674 | Cycling Thermostat 140 Deg. (Replaces: 303392) |
|
Immediately | $ 75.63 | ||||
| 008 | WP33303391 | Thermostat, Cycling (Replaces: 33303391) |
|
$ 133.35 | |||||
| 009 | WP489128 | Screw (Replaces: 22001996) |
|
$ 10.26 | |||||
| 010 | WP33001762 | Fuse, Thermal (w` Bracket) (Replaces: 33001762) |
|
Immediately | $ 56.80 | ||||
| 011 | NLA | Screw |
|
- | |||||
| 012 | 33002044 | Guide |
|
- | |||||
| 013 | 33002711 | Cover, Blower Housing |
|
- | |||||
| 014 | 314818 | Screw |
|
- | |||||
| 015 | W10197708 | Motor & Pulley Assembly (50hz) (Replaces: 33002479) |
|
Immediately | $ 424.17 | ||||
| 015 | W10197708 | Motor, Drive 50hz (Replaces: 33002796) | 68 |
|
Immediately | $ 424.17 | |||
| 016 | WPY015825 | Clip, Motor (Replaces: 33002221) |
|
$ 22.65 | |||||
| 017 | WP488234 | Screw, Ground Wire (Replaces: 910343) |
|
$ 6.37 | |||||
| 018 | WP210684 | Foot, Rubber (Replaces: 210684) |
|
Immediately | $ 15.31 | ||||
| 019 | 33002040 | Clip, Wire Harness |
|
- | |||||
| 020 | 33002157 | Grommet |
|
- | |||||
| 020 | 33002459 | Spring, Idler (Replaces: 33002460) |
|
$ 7.29 | |||||
| 020 | 33002461 | Plug For Spring |
|
- | |||||
| 021 | WP6-3705180 | Idler Arm & Shaft Assy. (Replaces: 33001840) |
|
Immediately | $ 62.51 | ||||
| 022 | WPY312527 | Washer, Idler Shaft (qty-1) (Replaces: Y312527) |
|
Immediately | $ 10.01 | ||||
| 023 | WP6-3700340 | Bearing, Idler Assembly (Replaces: 33001783) |
|
Immediately | $ 24.98 | ||||
| 024 | WP354987 | Retaining Ring, Idler Shaft (Replaces: 312958) |
|
Immediately | $ 11.11 | ||||
| 025 | WP315772 | Sleeve, Idler Arm (Replaces: 315772) |
|
$ 10.91 | |||||
| 026 | WPY014874 | Screw (Replaces: Y014874) |
|
$ 7.36 | |||||
| 027 | 33002466 | Support, Motor |
|
- | |||||
| 028 | Y313561 | Screw----na |
|
$ 5.27 | |||||
| 029 | WP90767 | Screw-gas Valve To Bracket (Replaces: 314568) |
|
Immediately | $ 7.43 | ||||
| 029 | 33002048 | Fastener, Push |
|
- | |||||
| 029 | 33002050 | Protector, Harness |
|
- | |||||
| 029 | 33002467 | Base (upr) |
|
- | |||||
| 029 | NLA | Base, (lwr)----na |
|
- | |||||
| 030 | WP90767 | Screw (Replaces: 211294) |
|
Immediately | $ 7.43 | ||||
| 031 | 315471 | Retainer, Wire |
|
- | |||||
| 032 | 410490 | Spring, Wire Harness |
|
- | |||||
| 033 | 315218 | Shield, Xfmer |
|
- | |||||
| 033 | 33001948 | Transformer Lwr |
|
- | |||||
| 033 | WPW10133285 | Transformer (Replaces: 33002508) |
|
$ 193.23 | |||||
| 034 | W11573574 | Screw (Replaces: 22001995) |
|
Immediately | $ 13.25 | ||||
| 034 | 22002239 | Clip, Lower Front Panel |
|
$ 5.84 | |||||
| 034 | 22002244 | Clip, Grounding |
|
- | |||||
| 034 | 33002757 | Bracket, Rh, Base To Support |
|
- | |||||
| 034 | 33002758 | Bracket, Lh, Base To Support |
|
- | |||||
| 035 | WP8563585 | Adjustable Leg & Nut (Replaces: 22001915) |
|
Immediately | $ 13.28 | ||||
| 036 | WP62739 | Nut (Replaces: Y052740) |
|
$ 7.50 |
