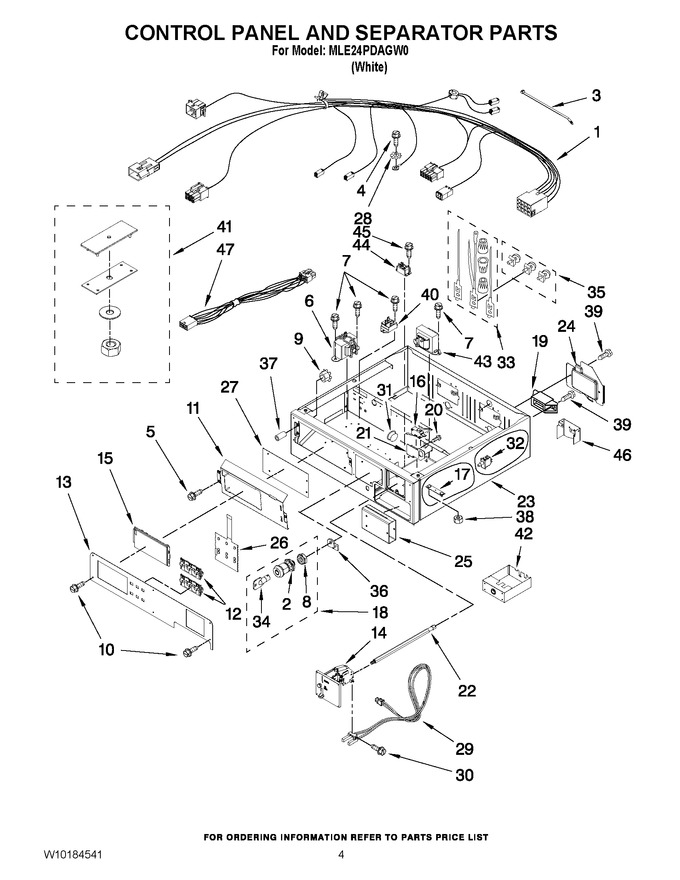

02 - Control Panel And Separator Parts


03 - Upper Cabinet And Front Panel Parts


04 - Upper And Lower Bulkhead Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10169691		Harness, Collar		Appelez-nous	-
2	W11395752		Hex Nut, 3/4-27   (Replaces: W10139762)				$ 12.32
3	WPW10155270		Tie Cable   (Replaces: 8529895)				$ 6.32
4	W10850756		Screw   (Replaces: 697776)				$ 7.38
5	W10756178		Screw   (Replaces: W10140652)				$ 5.66
6	W10237957		Transformer 120 - 22.5 Vac		Appelez-nous	-
7	W10080820		Screw		Appelez-nous	-
8	WPW10133264		Hex-nut 9/32 - 28   (Replaces: W10177242)				$ 131.37
9	WPW10139046		Nut 6-32   (Replaces: W10139046)				$ 8.31
10	WPW10131119		Screw   (Replaces: W10131119)				$ 6.57
11	W10163677		Plate, Control Mounting		Appelez-nous	-
12	WPW10424308		Push Button   (Replaces: W10131113)			Immediately	$ 19.30
13	W10135192		Facia Console		Appelez-nous	-
14	WPW10133242		Coin Drop Assembly   (Replaces: W10133242)				$ 126.51
15	WPW10133268		Cover, Display   (Replaces: W10133268)				$ 66.54
16	W10133281		Switch, Service Access		Appelez-nous	-
17	W10159907		Mounting Strap Assembly		Appelez-nous	-
18	WPW10133264		Lock Assembly   (Replaces: W10133264)				$ 131.37
19	W11690172		Terminal-block   (Replaces: W10237321)				$ 357.93
20	3400408		Screw, 4-40 X 1/16		Appelez-nous	-
21	W10160652		Bracket-switch		Appelez-nous	-
22	WPW10137319		Bolt, 10-32 X 6.06   (Replaces: W10137319)				$ 76.83
23	WPW10159849		Collar   (Replaces: W10159849)				$ 488.98
24	W10684155		Cover, Terminal Block   (Replaces: W10196677)		Appelez-nous	-
25	W11204020		Vault-body Assembly   (Replaces: W10133258)				$ 379.55
26	WPW10133278		Membrane Switch Assembly   (Replaces: W10133278)				$ 109.97
27	WPW10167611		Control Board   (Replaces: W10167611)				$ 395.65
28	3390443		Retainer, Terminal		Appelez-nous	-
29	W10155927		Coin-optic Sensor Assembly		Appelez-nous	-
30	WP3395530		Screw   (Replaces: W10142655)				$ 7.71
31	W10165297		Snap Bushing		Appelez-nous	-
32	W11123448		Switch, Vault & Service Door   (Replaces: W10133289)		Appelez-nous	-
33	279318		Terminal Brass Tinned (3) (includes Item. 35 )			Immediately	$ 95.44
34	WPW10140858		Key, Access Door   (Replaces: W10140858)			Immediately	$ 19.89
35	279393		Terminal-block Screw Kit (for Terminal Block			Immediately	$ 50.09
36	W10233256		Locking Cam				$ 69.50
37	W11117166		Standoff, Circuit Board   (Replaces: W10133514)		Appelez-nous	-
38	WPW10080190		Nut, 3/8-16   (Replaces: W10080190)			Immediately	$ 9.01
39	W11676450		Screw   (Replaces: W10080740)				$ 13.28
40	W10133335		Relay-spt				$ 40.14
41	W11416034		Kit-coin Box Security   (Replaces: W10169579)				$ 119.07
42	W11204019		Coin-box   (Replaces: W10133248)				$ 147.47
43	W10237958		Transformer 240 - 120 Vac		Appelez-nous	-
44	W11553481		Relay, Heater   (Replaces: W10258680)		Appelez-nous	-
45	WP489464		Screw   (Replaces: W10080700)			Immediately	$ 7.54
46	W10192090		Bracket, Terminal Block				$ 97.55
47	W10111027		Jumper, Transformer				$ 43.29
