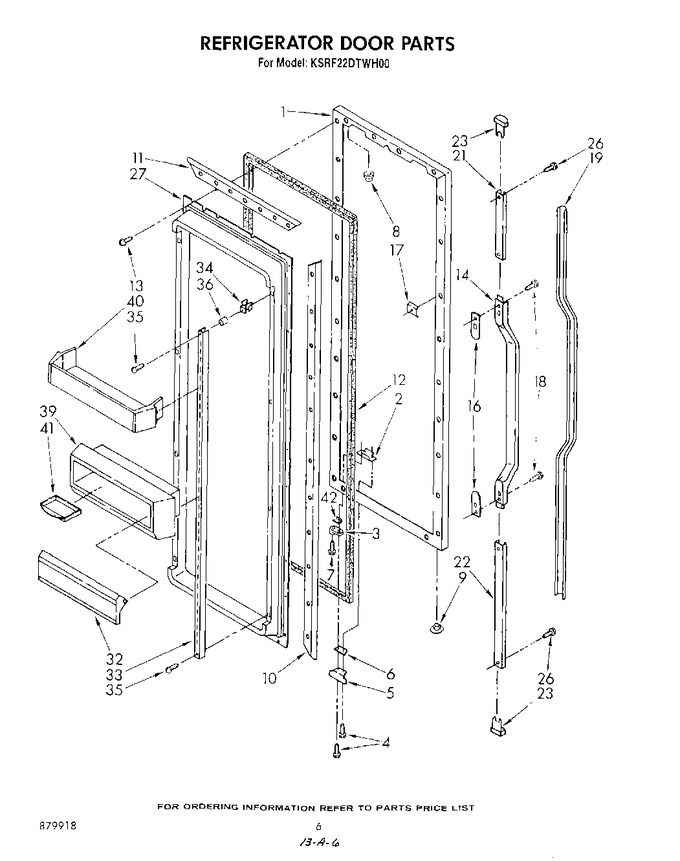

KSRF22DTWH00 | The Brick : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	1117559	Refrigerator, Door Panel (platinum)	Appelez-nous	-
1	1117557	Refrigerator, Door Panel (white)	Appelez-nous	-
1	1117610	Refrigerator, Door Panel (almond)	Appelez-nous	-
1	1117558	Refrigerator, Door Panel (toast)	Appelez-nous	-
2	988402	Tap Plate	Appelez-nous	-
3	4318165	Door Closer, Upper Cam (Replaces: 1115905)		Immediately	$ 26.77
4	488549	Screw, 8 X 5/8	Appelez-nous	-
4	488930	Screw (repair)	Appelez-nous	-
5	1115906	Bracket, Door Stop	Appelez-nous	-
6	988421	Shim	Appelez-nous	-
7	WP489069	Screw, 8 X 1/2 (Replaces: 488938)		Immediately	$ 7.56
8	509929	Cap, Hinge	Appelez-nous	-
9	534927	Hole Plug	Appelez-nous	-
10	836120	Retainer, Side	Appelez-nous	-
11	836121	Retainer, Top & Bottom	Appelez-nous	-
12	2188404A	Door, Gasket (Replaces: 939565)			$ 242.33
13	WP489069	Screw, No.7 X 1/2 (Replaces: 489101)		Immediately	$ 7.56
13	WP681414	Screw ((repair)) (Replaces: 488552)		Immediately	$ 7.62
14	1107215	Handle Center	Appelez-nous	-
16	1107651	Shim, Handle Center (2)	Appelez-nous	-
17	941242	Screw Anchor (2)	Appelez-nous	-
18	WP488729	Screw (Replaces: 489222)		Immediately	$ 7.45
19	1117548	Insert, Handle	Appelez-nous	-
21	1107241	Retainer, Insert	Appelez-nous	-
22	1107617	Retainer, Insert	Appelez-nous	-
23	1107341	End Cap (2)	Appelez-nous	-
26	00489248	Screw, 10-32 X 5/8 (Replaces: 489248)			$ 34.73
27	1107268	Interior Door, Panel	Appelez-nous	-
32	1107289	Compartment Door	Appelez-nous	-
33	1107295	Shelf Ladder	Appelez-nous	-
34	537095	Clip, Expansion	Appelez-nous	-
35	489188	Screw, 8-15 X 1 1/4 (8)	Appelez-nous	-
36	1107352	Spacer, Shelf	Appelez-nous	-
39	1107284	Shelf, Door Cantilever Bin	Appelez-nous	-
40	1107310	Cantilever, Door Shelf	Appelez-nous	-
41	520747	Tray, Butter	Appelez-nous	-
42	WP1104787	Shim, Door Closer Cam (Replaces: 1104787)			$ 7.16
