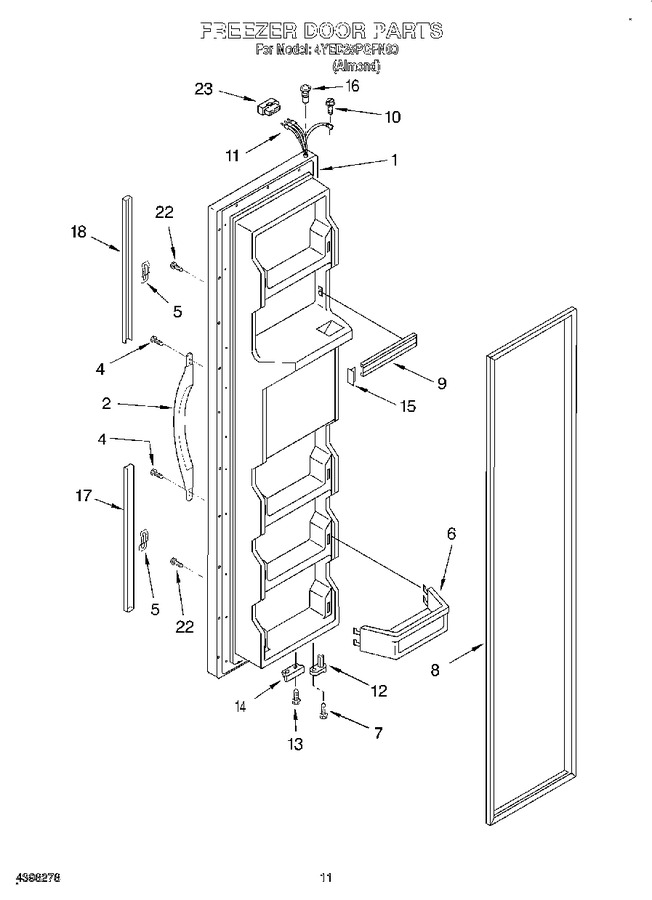

SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Airflow


11 - Control


12 - Icemaker, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2186649N		Handle, Center		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 6.57
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 6.99
6	2194501		Trivet, Shelf (4)		Appelez-nous	-
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
8	2159074		Door Gasket, Magnetic (repair)				$ 293.13
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195931)			Immediately	$ 21.84
10	WP488234		Screw   (Replaces: 489422)				$ 6.37
11	2183713		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2195950		Bracket, Door Stop				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
16	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.34
17	2194970N		Extension, Bottom		Appelez-nous	-
18	2194974N		Extension, Top		Appelez-nous	-
21	2197642N		Freezer Door (includes Item 8 And Dispenser Front Parts)		Appelez-nous	-
22	WP3400852		Screw   (Replaces: 3400852)				$ 9.30
23	2169477		Connector		Appelez-nous	-
