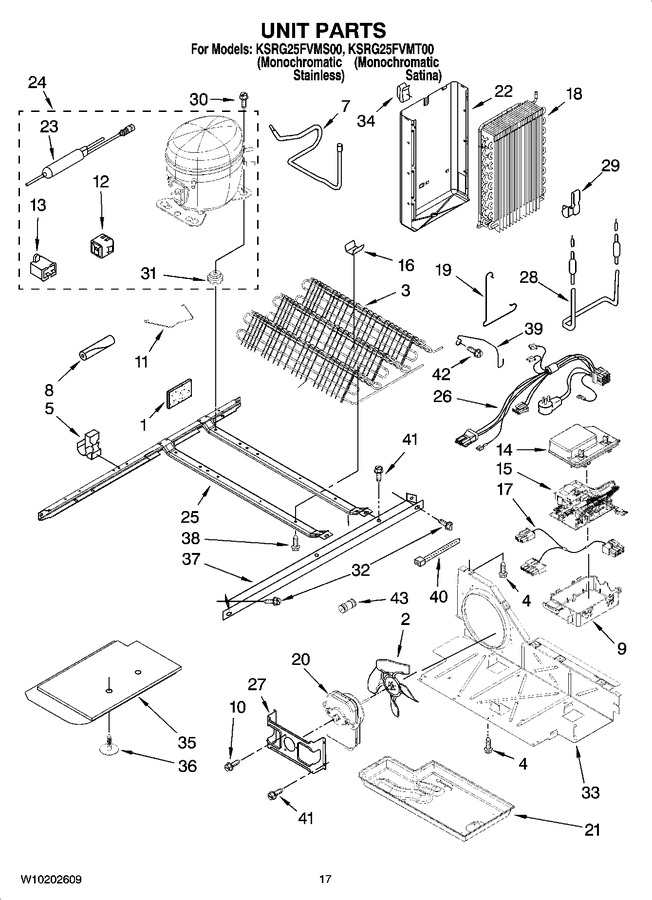

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 2 | W10156818 | Fan, Blade (Replaces: 12825802) |
|
Immediately | $ 56.52 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121484) |
|
$ 291.11 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 5 | W10169512 | Clip, Wire |
|
- | |||||
| 7 | 2205765 | Tube Suction |
|
$ 36.04 | |||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 19.19 | ||||
| 9 | 2326982 | Box, Control |
|
$ 81.33 | |||||
| 10 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.09 | |||||
| 11 | 2223314 | Clip, Retaining |
|
- | |||||
| 12 | W10896198 | Start-device, Combination (start Relay And Overload) (Replaces: 2304884) |
|
$ 175.69 | |||||
| 13 | WPW10662129 | Capacitor (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 14 | 2255624 | Cover, Control |
|
- | |||||
| 15 | 2322572 | Elec. Control |
|
- | |||||
| 16 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 17.44 | |||||
| 17 | 2310439 | Harness, Elec Ctl |
|
- | |||||
| 18 | WP2188823 | Evaporator (Replaces: 2188823) |
|
Immediately | $ 343.34 | ||||
| 19 | 2161324 | Clamp |
|
- | |||||
| 20 | WP2188874 | Fan, Motor (Replaces: 2188874) |
|
Immediately | $ 111.76 | ||||
| 21 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 142.34 | ||||
| 22 | 2217194 | Heat Shield |
|
- | |||||
| 23 | WPW10143759 | Drier (Replaces: 2317845) |
|
Immediately | $ 27.70 | ||||
| 24 | W10139462 | Compressor (includes Items 12, 13, 23, & 31) (also Order 876765 Tube Kit) |
|
$ 601.50 | |||||
| 25 | 2304904 | Unit Mounting Frame |
|
- | |||||
| 26 | 2310425 | Unit, Harness |
|
$ 207.86 | |||||
| 27 | WP2181929 | Fan, Motor Bracket (Replaces: 2181929) |
|
$ 11.64 | |||||
| 28 | WP2323198 | Heater, Defrost (Replaces: 2323198) |
|
Immediately | $ 81.63 | ||||
| 29 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 30 | 876811 | Screw (Replaces: 489373) |
|
$ 7.01 | |||||
| 31 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.01 | |||||
| 31 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.57 | |||||
| 32 | 489340 | Screw |
|
- | |||||
| 33 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 91.08 | |||||
| 34 | 2155547 | Clip, Heat Shield |
|
- | |||||
| 35 | 2304899 | Unit Cover, Bottom |
|
- | |||||
| 36 | 489396 | Clip |
|
$ 10.13 | |||||
| 37 | 2305374 | Unit Mounting Rail |
|
$ 76.20 | |||||
| 38 | W11544659 | Screw (Replaces: 8281232) |
|
$ 12.92 | |||||
| 39 | 2260517 | Guard, Fan |
|
- | |||||
| 40 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 7.47 | |||||
| 41 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.06 | |||||
| 42 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 43 | WPW10334458 | Connector, Water Tube (Replaces: 2320322) |
|
$ 20.40 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | |||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 86.33 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 123.53 |
