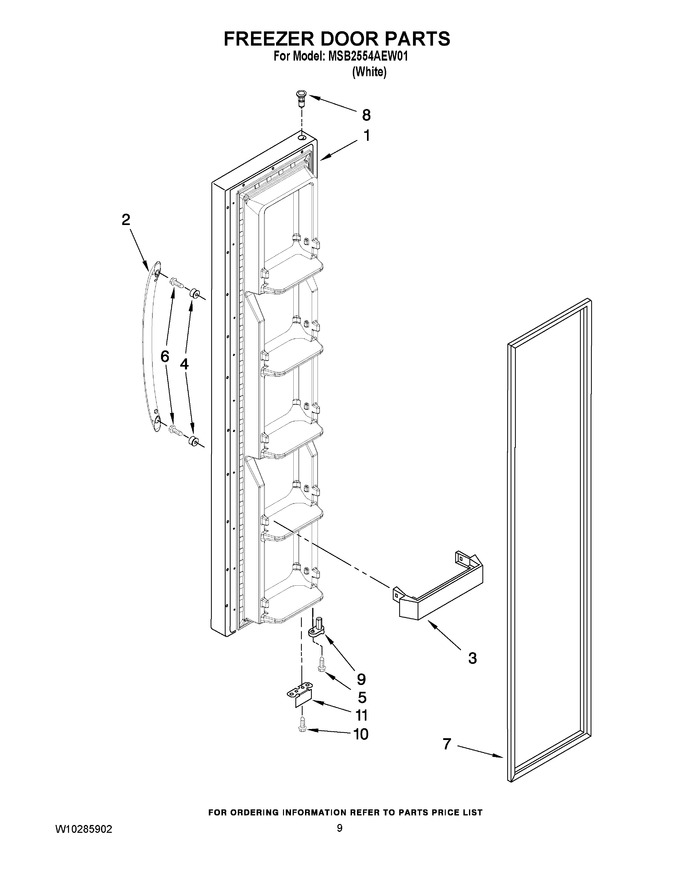

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2327058W | Freezer Door (includes No.7 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | 13004701W | Handle (Replaces: 67006114) |
|
$ 174.57 | |||||
| 3 | WP2309718 | Door Trim (6) (Replaces: 2309718) |
|
$ 55.34 | |||||
| 4 | WPW10170540 | Stud (Replaces: 2326259) |
|
Immediately | $ 9.12 | ||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 6 | WP488163 | Screw (2) (Replaces: 488208) |
|
$ 7.13 | |||||
| 7 | 2159074 | Door Gasket, Magnetic (Replaces: 2309532) |
|
$ 293.13 | |||||
| 8 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 9 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.80 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 11 | W10185566 | Bracket, Door Stop |
|
- |
