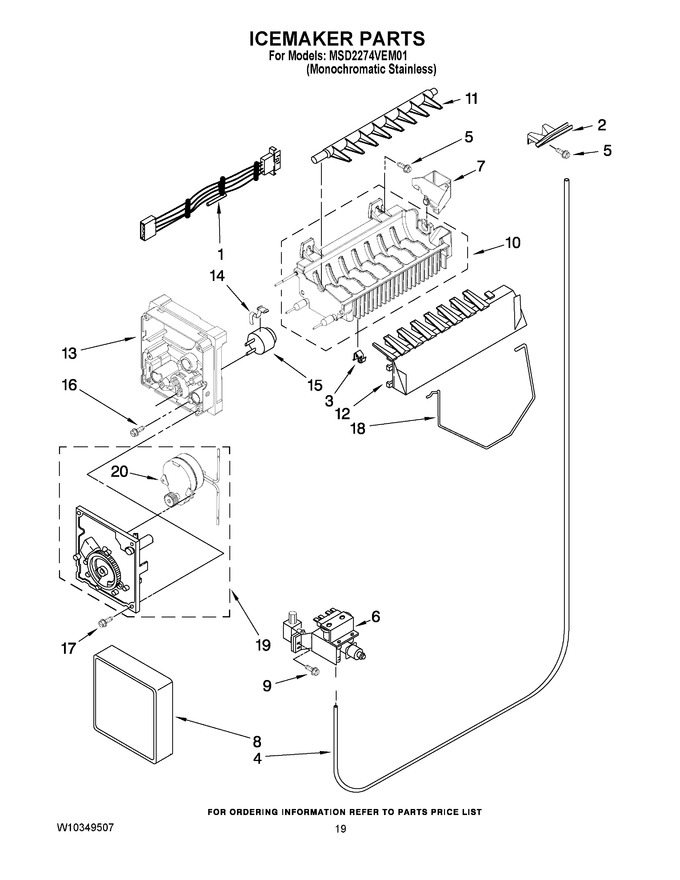

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2187467 | Wire Assy (Replaces: 2187467) |
|
$ 121.84 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 31.79 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | W10823511 | Tube, Water (Replaces: 2304859) |
|
Immediately | $ 29.17 | ||||
| 5 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 6 | WPW10179146 | Filter Valve Asm (Replaces: W10179146) |
|
Immediately | $ 104.95 | ||||
| 7 | W10122561 | Cup, Water Fill |
|
$ 26.24 | |||||
| 8 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 7.94 | ||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 10 | W10136591 | Mold & Heater Assembly (also Order 542638) |
|
$ 48.33 | |||||
| 11 | W10318914 | Ejector (Replaces: 2323524) |
|
$ 34.27 | |||||
| 12 | WPW10122563 | Ice Striper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 13 | WP2195914 | Support (Replaces: 2195914) |
|
$ 98.82 | |||||
| 14 | WP2315522 | Retainer,thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 15 | 628532 | Thermostat (also Order 542369 Cement Alumilastic) |
|
$ 98.16 | |||||
| 16 | 8533917 | Screw |
|
$ 12.64 | |||||
| 17 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 18 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 56.89 | ||||
| 19 | 8201515 | Module Assembly (includes No.20) (Replaces: 626691) |
|
Immediately | $ 143.80 | ||||
| 20 | N/P | Motor (not Serviced, Order No.19) |
|
- | |||||
| 100 | WPW10300022 | Complete Icemaker Assembly (Replaces: W10300022) |
|
Immediately | $ 233.87 |
