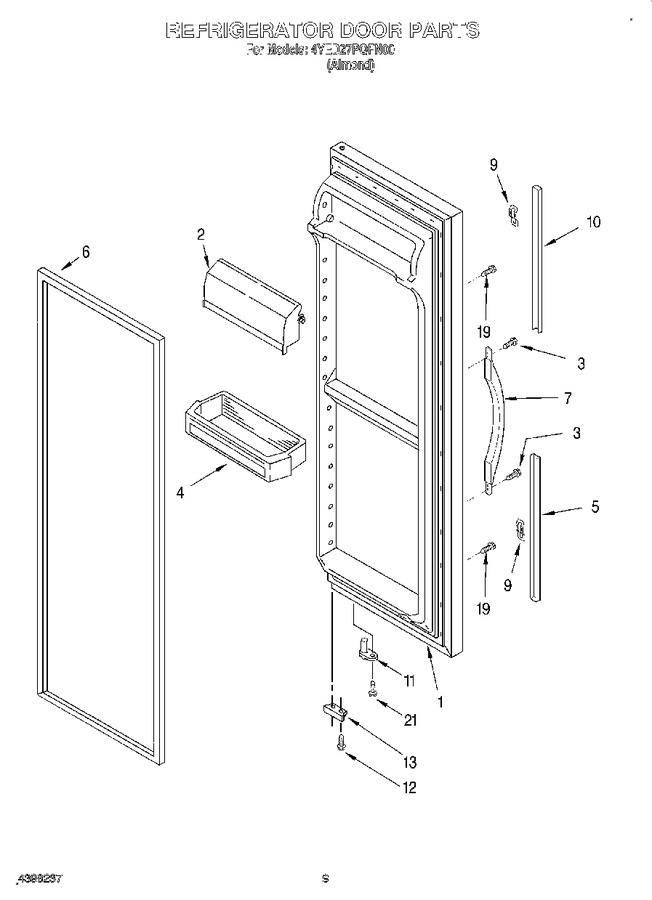

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2194514N		Refrigerator Door (includes Item 6)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
3	WP489491		Screw   (Replaces: 489491)				$ 7.30
4	2198129		Shelf Bin (4)		Appelez-nous	-
5	2194970N		Extension, Bottom		Appelez-nous	-
6	2159075		Door Gasket, Magnetic (repair)			Immediately	$ 333.00
7	2193345N		Handle, Center		Appelez-nous	-
9	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
10	2194974N		Extension, Top		Appelez-nous	-
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
12	WP489483		Screw   (Replaces: 489420)				$ 11.41
13	2155331		Bracket, Door Stop		Appelez-nous	-
19	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
21	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
