SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Refrigerator Door


06 - Freezer Door


07 - Air Flow


08 - Control


09 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	2190685		Fan, Blade				$ 52.00
3	2204484		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
6	681390		Screw   (Replaces: 489099)				$ 13.71
7	2149293		Heat Shield		Appelez-nous	-
8	2205764		Tube Suction And Drain Pan   (Replaces: 2204238)				$ 89.18
9	WP2158826		Dampner   (Replaces: 2158826)				$ 1.82
10	509812		Grommet		Appelez-nous	-
11	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
12	WP61002138		Cover (service)   (Replaces: 4387959)				$ 9.21
13	4388786		Overload ((service, Includes Relay))   (Replaces: 4388101)		Appelez-nous	-
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	2188508		Start Device, Combination (start Relay And Overload) For Production Compressor Only		Appelez-nous	-
16	W10683556		Clip, Condenser   (Replaces: 2216914)				$ 19.38
17	WP2201147		Capacitor (service)   (Replaces: 4387874)				$ 135.42
17	WP2201147		Capacitor (production)   (Replaces: 2201147)				$ 135.42
18	2211760		Tube, Condenser To Heat Loop		Appelez-nous	-
20	2200465		Unit Cover, Bottom		Appelez-nous	-
21	489396		Clip				$ 11.26
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
24	2219862		Motor, Fan		Appelez-nous	-
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 158.16
26	2187404		Harness, Unit		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2199167)			Immediately	$ 57.13
28	W10183407		Compressor (includes Items 12,13,15,17 & 27)   (Replaces: 2187162)				$ 435.61
30	2304903		Unit Mounting Frame   (Replaces: 2160501)				$ 244.68
32	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.93
33	WP2313330		Heater, Defrost   (Replaces: 2188176)				$ 163.13
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Bi-metal, Defrost   (Replaces: 2196155)			Immediately	$ 50.77
37	W11661574		Screw   (Replaces: 489473)				$ 14.29
39	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
39	W11661108		Grommet (4) (production)   (Replaces: 2183042)				$ 15.21
40	489340		Screw		Appelez-nous	-
41	W10896764		Air Baffle   (Replaces: 2196202)				$ 101.20
42	2155547		Clip, Heat		Appelez-nous	-
48	2149718		Unit Mounting Rail		Appelez-nous	-
49	W11544659		Screw   (Replaces: 8281232)				$ 14.35
50	1105612		Guard, Fan				$ 42.61
51	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
52	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 8.30
53	WP489427		Screw   (Replaces: 489427)				$ 7.84
54	850145		Wire Connector		Appelez-nous	-
55	WP489478		Screw   (Replaces: 489478)				$ 8.18
59	WPW10190943		3eckmf-87   (Replaces: 1129317)				$ 397.04
59	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
59	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
59	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
59	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
59	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
59	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
59	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
59	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
59	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
59	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
59	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
59	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
59	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
59	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
59	1117510		Torx Key				$ 5.84
59	2208280		Clip, Wire & Tube		Appelez-nous	-
59	978026		Valve, Access (5/16``)			Immediately	$ 134.49
59	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 18.65
59	978028		Valve, Access (1/2)		Appelez-nous	-
59	978029		Valve Access (5/8``)				$ 93.85
59	978030		Valve, Access (3/4``)				$ 137.25
59	876764		Valve, Access(3/16``)			Immediately	$ 95.92
59	350942		Primer White (13 Oz. Spray Can)				$ 94.14
59	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
59	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
59	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
59	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
59	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 243.14
59	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
59	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
59	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
59	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
59	833938		Kit, Terminal Connector				$ 8.47

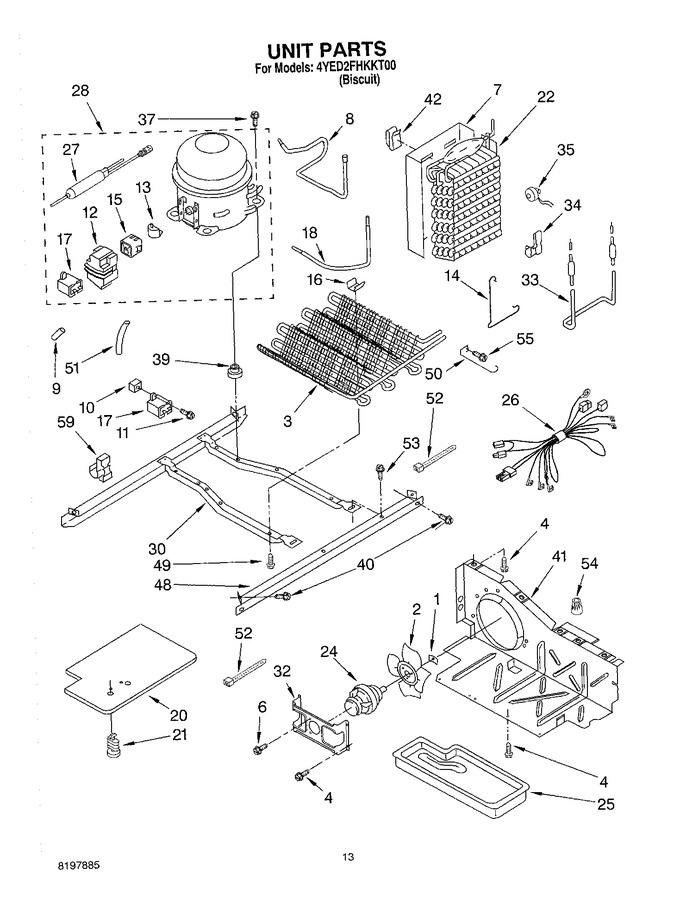

    View Diagram in Separate Window       Print Part List
