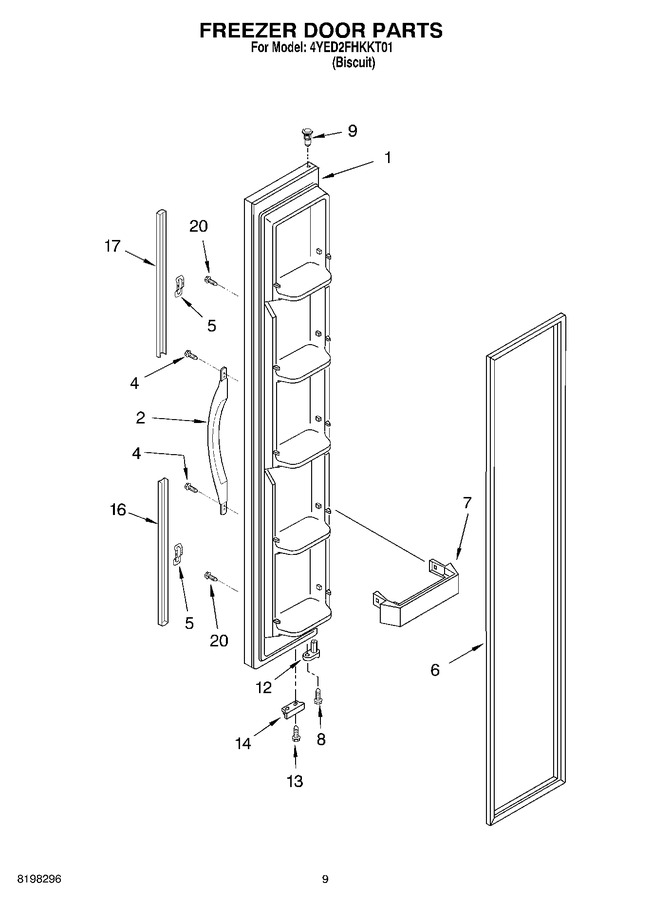

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206725T		Freezer Door (includes No.6) (biscuit)		Appelez-nous	-
2	2186649T		Handle, Center (biscuit)		Appelez-nous	-
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	2159072		Door, Gasket Magnetic   (Replaces: 2221301)				$ 323.60
7	2194286		Trivet, Door Shelf (5)		Appelez-nous	-
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
16	2194969T		Extension, Bottom (biscuit)		Appelez-nous	-
17	2194971T		Extension, Top (biscuit)		Appelez-nous	-
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
