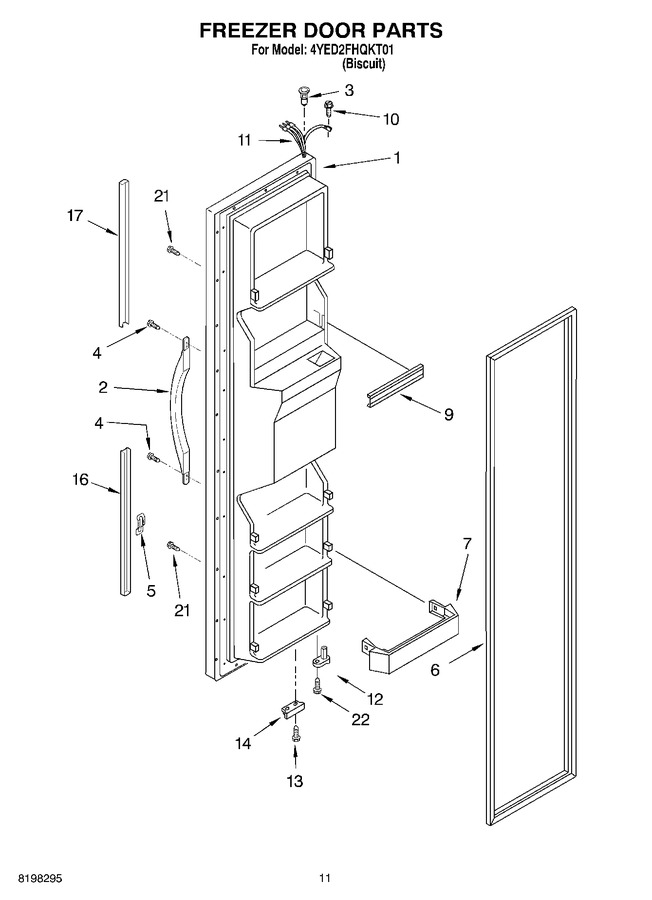

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2214700T		Freezer Door (includes No.6 And Dispenser Front Parts) (biscuit)		Appelez-nous	-
2	2186649T		Handle, Center (biscuit)		Appelez-nous	-
3	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 8.15
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	2159072		Door, Gasket Magnetic   (Replaces: 2221301)				$ 323.60
7	WP2156021		Trivet, Door Shelf (4)   (Replaces: 2156021)				$ 66.43
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209680)			Immediately	$ 24.27
10	WP489128		Screw   (Replaces: 8281149)				$ 11.40
11	2311642		Wire Harness   (Replaces: 2206602)				$ 228.82
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 7.20
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
16	2194969T		Extension, Bottom (biscuit)		Appelez-nous	-
17	2194971T		Extension, Top (biscuit)		Appelez-nous	-
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
22	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
