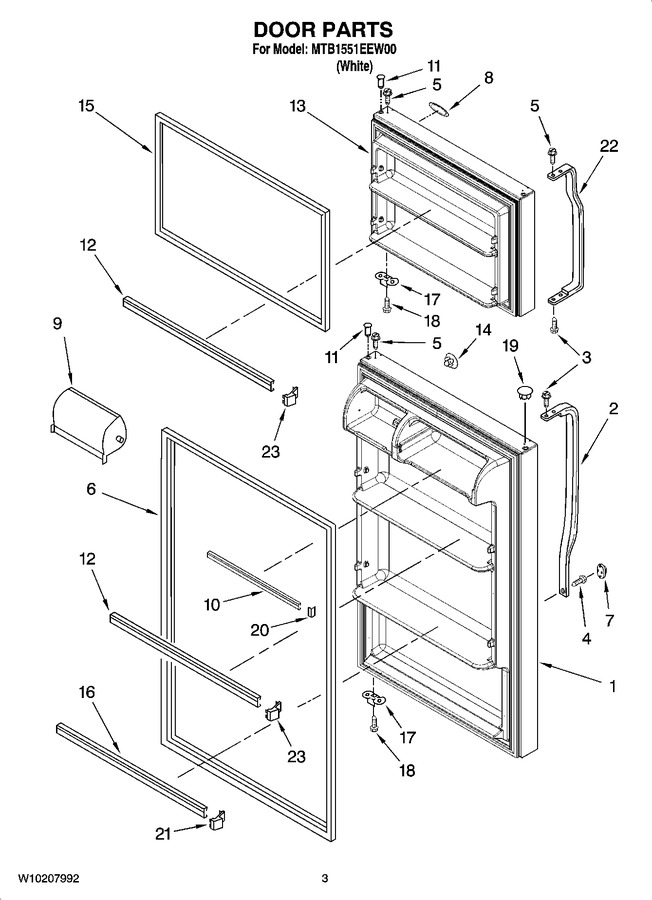

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2316029W		Refrigerator Door Includes, Item 6 (white)		Appelez-nous	-
2	WP2221946W		Handle (white)   (Replaces: 2221946W)			Immediately	$ 117.10
3	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
4	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
5	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
6	WP2319265T		Door Gasket, Magnetic   (Replaces: W10190033)			Immediately	$ 210.38
7	WP2202819W		Cover, Screw (white)   (Replaces: 2202819W)			Immediately	$ 7.33
8	2324038		Nameplate				$ 64.43
9	WP2207942		Door, Compartment   (Replaces: 2207942)			Immediately	$ 65.89
10	W11129820		Trim, Door Shelf (upper)   (Replaces: 2266729)			Immediately	$ 114.61
11	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
12	WP2266727		Trim, Door (middle)   (Replaces: 2266727)			Immediately	$ 108.51
13	2316026W		Freezer Door Includes,item 15 (white)				$ 479.27
14	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
15	WP2319263T		Door Gasket, Magnetic   (Replaces: W10190031)			Immediately	$ 194.27
16	WP2266738		Trim, Door Shelf (lower)   (Replaces: 2266738)				$ 100.52
17	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
18	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
19	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
20	WP2156007		Plug-trim   (Replaces: 2156007)			Immediately	$ 7.23
21	WP2195916K		Plug, Trim   (Replaces: 2195916)			Immediately	$ 11.86
22	WP2202098		Handle, Fc (white)   (Replaces: 2202098)				$ 141.14
23	WP2156003		End Cap, Trim   (Replaces: 2156003)			Immediately	$ 11.93
