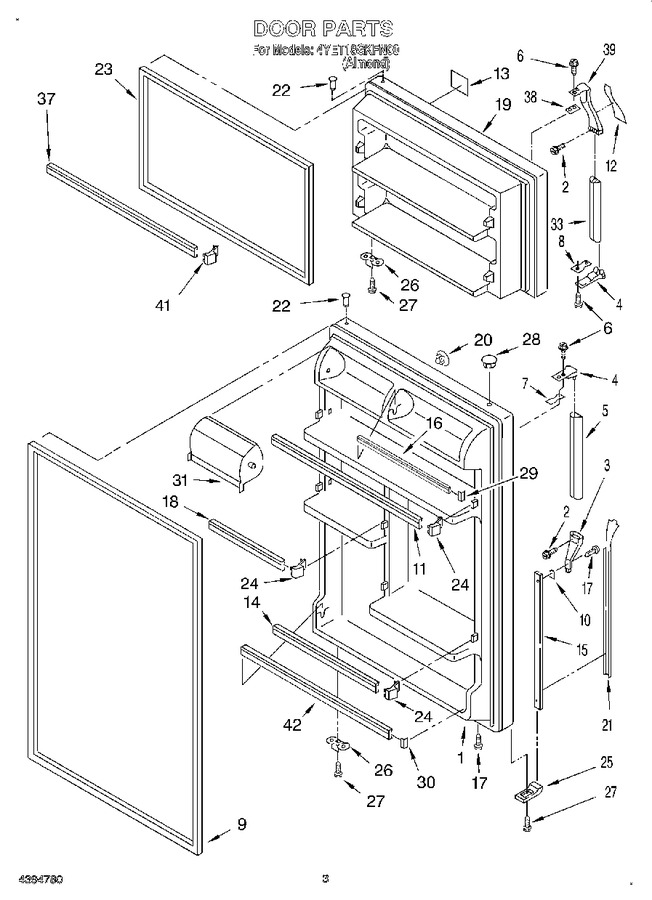

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183949 | Refrigerator Door (includes No.9 & No.22) |
|
- | |||||
| 2 | 489022 | End Cap |
|
- | |||||
| 3 | 1109189 | End Cap |
|
- | |||||
| 4 | 944157 | End Cap, Handle (2) |
|
- | |||||
| 5 | 943068 | Handle Center |
|
- | |||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.98 | |||||
| 7 | 943188 | Spacer |
|
$ 7.80 | |||||
| 8 | 935074 | Shim |
|
- | |||||
| 9 | 2159057 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 187.51 | ||||
| 10 | 935075 | Shim |
|
- | |||||
| 11 | 2195941 | Trim, Door Shelf |
|
$ 47.96 | |||||
| 12 | 1108830 | Insert, Handle |
|
- | |||||
| 13 | 2195064 | Nameplate |
|
- | |||||
| 14 | WP2195943 | Trim, Door Shelf (Replaces: 2195943) |
|
$ 91.78 | |||||
| 15 | 2159417 | Retainer |
|
- | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2180027) |
|
$ 124.32 | |||||
| 17 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 18 | 2195942 | Trim, Door |
|
$ 56.34 | |||||
| 19 | 2182491 | Freezer Door (includes No.22 & No.23) |
|
- | |||||
| 20 | 2189008 | Hole Plug |
|
- | |||||
| 21 | 2166784 | Insert, Handle |
|
- | |||||
| 22 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 8.14 | |||||
| 23 | 2159327 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 164.58 | ||||
| 24 | WP2195915 | Endcap, Trim (Replaces: 2195915) |
|
$ 13.72 | |||||
| 25 | 1105804 | Endcap |
|
- | |||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 28 | 989196 | Hole Plug |
|
- | |||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.79 | ||||
| 31 | WP2218113 | Door, Compartment (Replaces: 2171036) |
|
Immediately | $ 50.33 | ||||
| 33 | 2170424 | Handle, F.c. |
|
- | |||||
| 37 | 2195946 | Trim-door (2) |
|
$ 46.58 | |||||
| 38 | 943187 | Shim |
|
$ 25.14 | |||||
| 39 | 944163 | Handle End, |
|
$ 53.54 | |||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 42 | WPW10421484 | Trim, Door (Replaces: 2195949) |
|
$ 136.25 | |||||
| 100 | 2182571 | Featurepak (includes 11,14, 16,18,29,30,37, 41,42) Also See Shelf Parts Pg. |
|
- |
