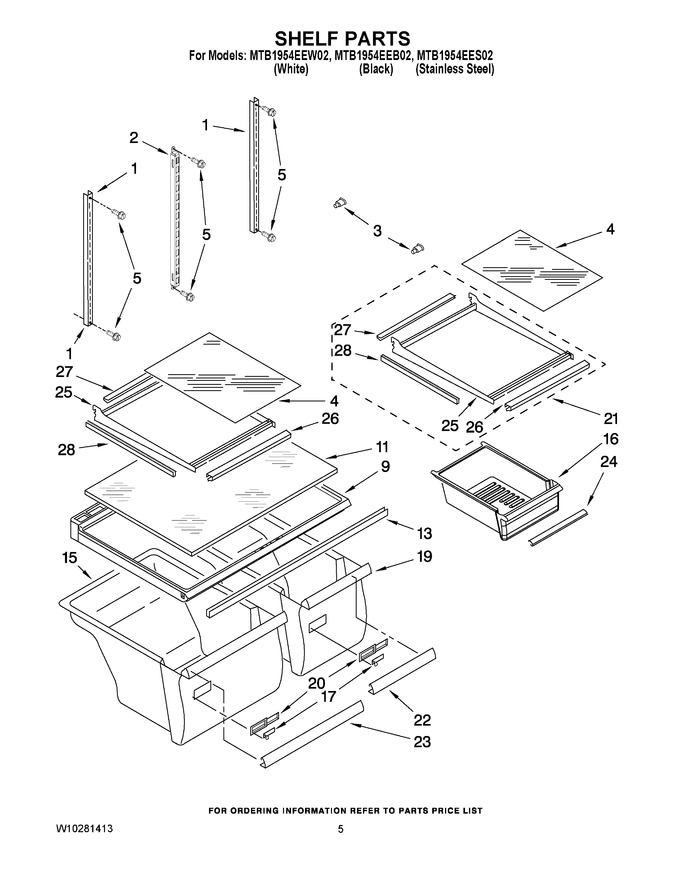

03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Freezer


07 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2300520		Shelf, Ladder Center				$ 75.36
3	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 13.23
4	2200985		Glass Shelf		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489478)				$ 7.36
9	WP2314548		Crisper Cover   (Replaces: 2314548)				$ 233.85
11	WP2169921		Glass, Crisper Cover   (Replaces: 2221693)				$ 233.04
13	WP2172748		Crisper, Support   (Replaces: 2314477)				$ 91.87
15	W10854037		Pan, Crisper (13-inch) (includes 17 20 & 23)   (Replaces: 2218130)			Immediately	$ 161.27
16	WP2218127K		Pan, Meat   (Replaces: 2218127)				$ 132.12
17	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
19	W10856580		Pan, Crisper (10-inch) (includes 17 20 & 22)   (Replaces: 2218129)			Immediately	$ 159.33
20	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 14.23
21	2189453		Shelf Assembly		Appelez-nous	-
22	2320366		Trim-crspr Pan 10``		Appelez-nous	-
23	2320357		Trim-crspr Pan 13``		Appelez-nous	-
24	2176356		Trim, Meat Pan		Appelez-nous	-
25	2201105		Frame Assembly				$ 78.45
26	2188684		Trim-shelf, Front				$ 11.33
27	WP2188689		Trim-shelf, Rear   (Replaces: 2188686)				$ 109.40
28	2188711		Trim Shelf, Side		Appelez-nous	-
