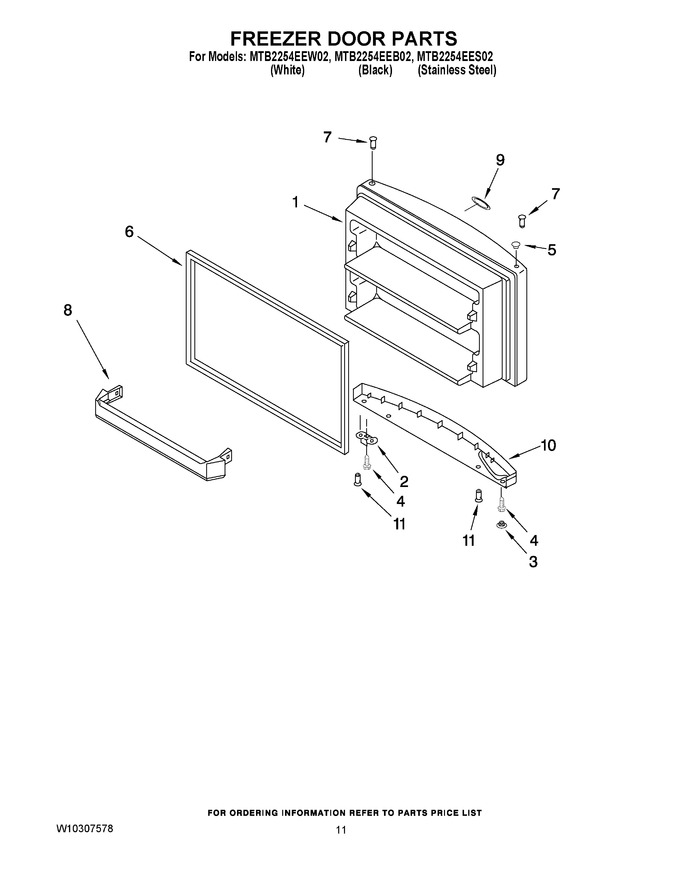

06 - Freezer Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2204856 | Freezer Door (includes Illus. 6 & 7) (black) |
|
- | |||||
| 1 | W10271891 | Freezer Door (includes Illus. 6 & 7) (stainless) |
|
- | |||||
| 1 | 2202520 | Freezer Door (includes Illus. 6 & 7) (white) |
|
- | |||||
| 2 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 3 | 2204840 | Hole Plug, Endcap (black) |
|
$ 33.23 | |||||
| 3 | 2204837 | Hole Plug, Endcap (white) |
|
$ 27.77 | |||||
| 4 | WP681249 | Screw, 8-18 X 3/4 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 5 | WP2212648 | Hole Plug, Hinge Sleeve (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 5 | WP2212651 | Hole Plug, Hinge Sleeve (black) (Replaces: 2212651) |
|
$ 21.79 | |||||
| 6 | 2177310 | Door Gasket, Magnetic (black) (Replaces: 2214969) |
|
$ 301.78 | |||||
| 6 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 7 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 8 | 2159292 | Trivet |
|
$ 38.17 | |||||
| 9 | 2324038 | Nameplate (Replaces: 13035001) |
|
$ 64.43 | |||||
| 10 | 2300575W | Endcap, Handle (white) |
|
$ 14.41 | |||||
| 10 | 2300575B | Endcap, Handle (black) |
|
$ 17.71 | |||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 |
