SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Ice Maker, Optional

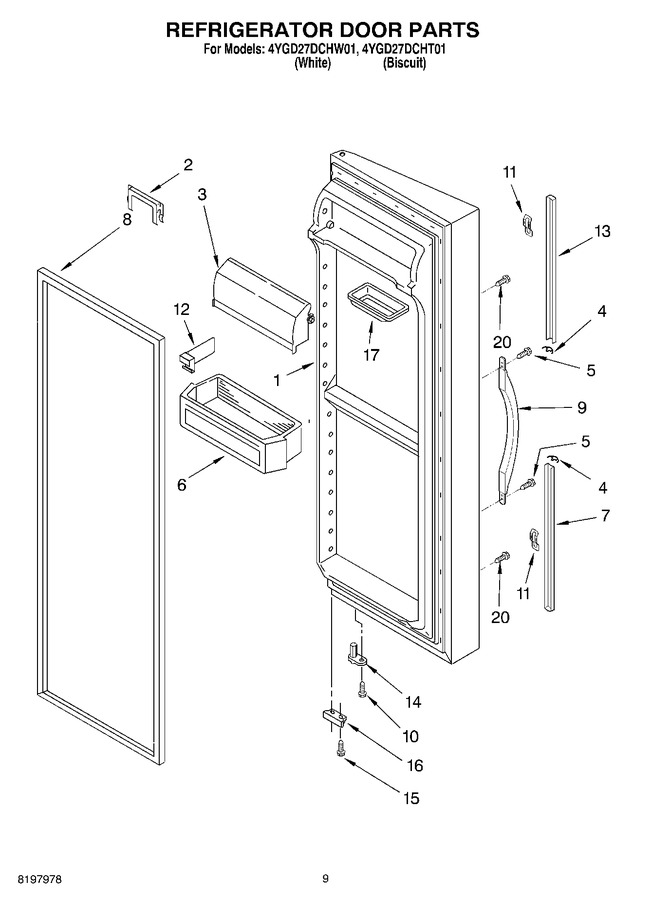

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2207024W		Refrigerator Door (includes Item No.8) (white)		Appelez-nous	-
1	2207024T		Refrigerator Door (includes Item No.8) (biscuit)		Appelez-nous	-
2	2173643		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2177105)			Immediately	$ 89.42
4	2207010G		Jewelry, Handle (gold)		Appelez-nous	-
5	WP489491		Screw   (Replaces: 489491)				$ 7.30
6	2179608		Shelf Bin (4)		Appelez-nous	-
7	2217186W		Extension, Bottom (white)		Appelez-nous	-
7	2217186T		Extension, Bottom (biscuit)		Appelez-nous	-
8	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
9	2217185T		Handle, Center (biscuit)		Appelez-nous	-
9	2217185W		Handle, Center (white)		Appelez-nous	-
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
11	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
12	2195496		Divider, Bin		Appelez-nous	-
13	2217187T		Extension, Top (biscuit)		Appelez-nous	-
13	2217187W		Extension, Top (white)		Appelez-nous	-
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
15	WP489483		Screw   (Replaces: 489420)				$ 11.41
16	2206910		Bracket, Door Stop (chrome)		Appelez-nous	-
17	2165792		Butter, Dish		Appelez-nous	-
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33

    View Diagram in Separate Window       Print Part List
