01 - Cabinet Parts

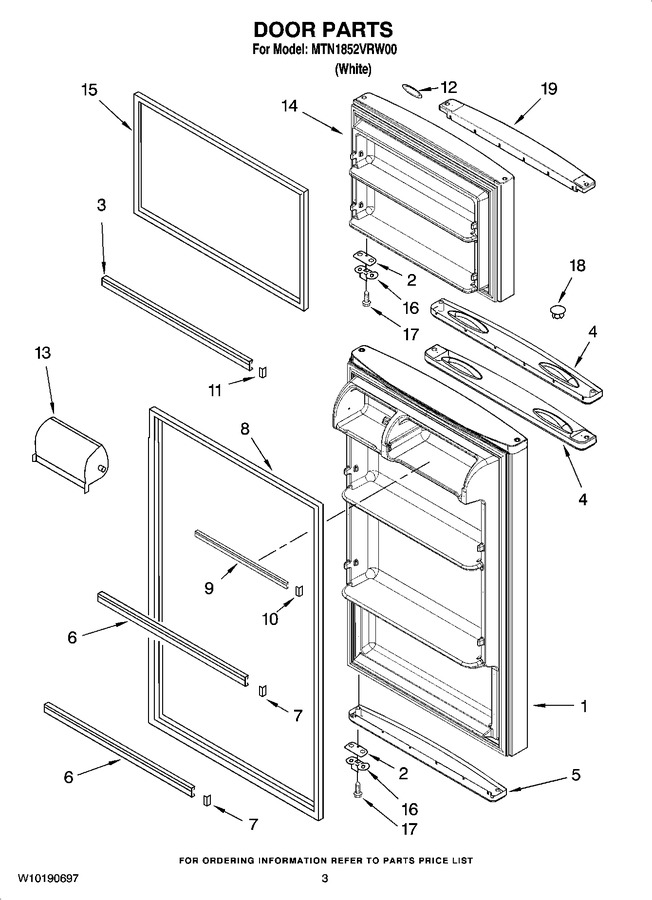

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316159W | Refrigerator Door (includes Illus. 4,5 & 8) (white) |
|
$ 479.27 | |||||
| 2 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 6.80 | ||||
| 3 | WP2266727 | Trim, Door Shelf (Replaces: 2266727) |
|
Immediately | $ 108.51 | ||||
| 4 | 2265645W | Handle (white, Rc & Fc) |
|
$ 197.98 | |||||
| 5 | 2265647W | Endcap, Bottom (white) |
|
$ 63.82 | |||||
| 6 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 100.52 | |||||
| 7 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 8 | WP2319264T | Gasket - (assy Door, R.c.) (Replaces: W10190032) |
|
Immediately | $ 193.96 | ||||
| 9 | W11129820 | Trim, Door Shelf (Replaces: 2266729) |
|
Immediately | $ 114.61 | ||||
| 10 | WP2156007 | Plug-trim (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 11 | WP2156003 | End Cap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 12 | 2324038 | Nameplate |
|
$ 64.43 | |||||
| 13 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 65.89 | ||||
| 14 | 2316367W | Freezer Door (includes Illus. 4,15 & 19) (white) |
|
$ 513.68 | |||||
| 15 | WP2319263T | Gasket - (assy Door, F.c.) (Replaces: W10190031) |
|
Immediately | $ 194.27 | ||||
| 16 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 17 | W10276642 | Screw (Replaces: 8533904) |
|
$ 5.77 | |||||
| 18 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 19 | 2265644W | Endcap, Top (white) |
|
$ 148.05 |
