View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

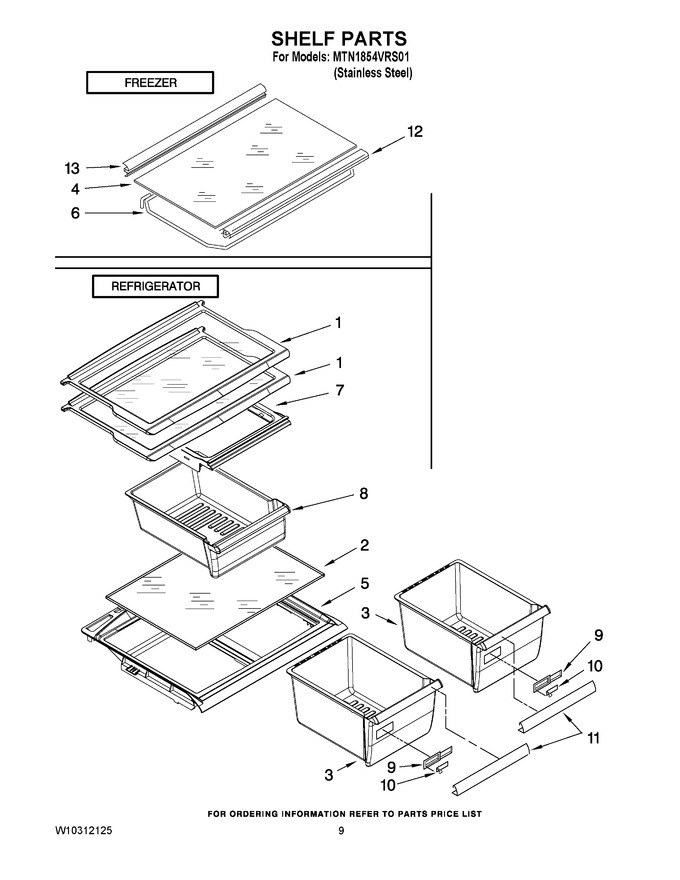

05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10837901 | Shelf (Replaces: 2263640) |
|
$ 266.29 | |||||
| 2 | WP2262441 | Glass Cover (Replaces: 2262441) |
|
Immediately | $ 232.92 | ||||
| 3 | WP2256704 | Crisper Pan (includes Items 9, 10 & 11) (Replaces: 2256704) |
|
Immediately | $ 162.81 | ||||
| 4 | WP2262442 | Glass, Shelf (Replaces: 2262442) |
|
$ 223.48 | |||||
| 5 | WP2222031 | Cover, Crisper (Replaces: 2222031) |
|
Immediately | $ 260.25 | ||||
| 6 | 2252848 | Shelf-frame, Wire |
|
$ 77.81 | |||||
| 7 | WP2256601 | Holder, Meat Pan (Replaces: 2256601) |
|
$ 180.21 | |||||
| 8 | WP2261934 | Meat Pan (Replaces: 2261934) |
|
Immediately | $ 151.19 | ||||
| 9 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.81 | |||||
| 10 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 11 | 2326140 | Trim, Crisper Pan |
|
$ 54.76 | |||||
| 12 | 2215011 | Trim, Shelf (front) |
|
$ 119.04 | |||||
| 13 | 2215010 | Trim, Shelf (rear) |
|
- |
