01 - Top And Cabinet Parts
02 - Control Panel Parts

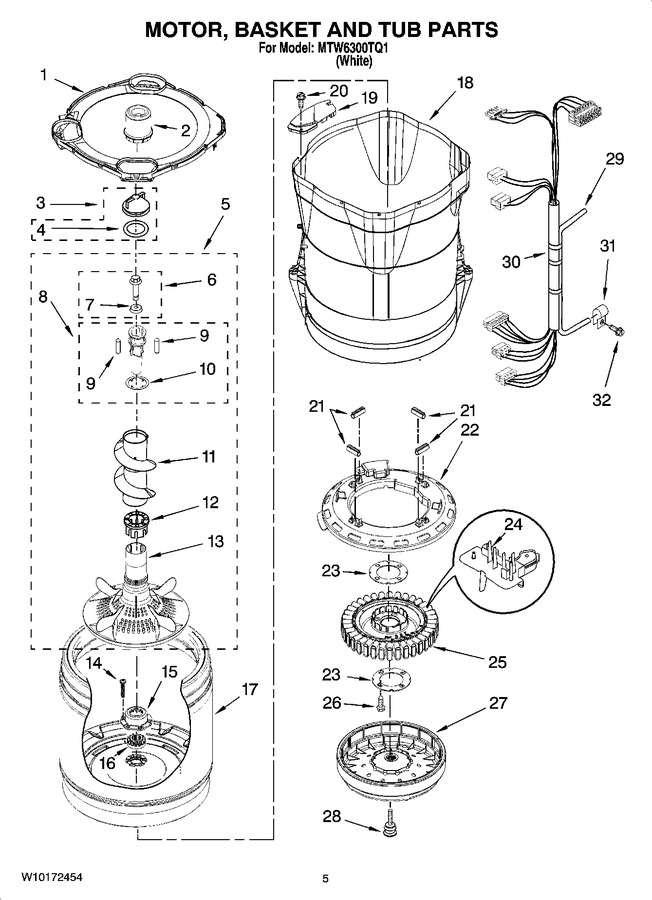

03 - Motor, Basket And Tub Parts
04 - Pump Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10130806 | Tub Ring |
|
$ 82.73 | |||||
| 2 | 8566491 | Dispenser, Fabric Softener |
|
$ 38.20 | |||||
| 3 | WPW10074580 | Cap, Barrier (Replaces: 3354733) |
|
Immediately | $ 13.02 | ||||
| 4 | WPW10072840 | Seal, Inner Cap (Replaces: W10072840) |
|
Immediately | $ 8.72 | ||||
| 5 | W10076310 | Agitator, Assembly (complete) |
|
$ 103.43 | |||||
| 6 | W10076270 | Screw & Washer Assembly |
|
$ 5.83 | |||||
| 7 | WPW10076260 | Washer (Replaces: W10076260) |
|
$ 11.88 | |||||
| 8 | W10076210 | Cam, Agitator |
|
- | |||||
| 9 | 280160 | Roller, Agitator Cam (set Of 4) (Replaces: 8558884) |
|
$ 8.39 | |||||
| 10 | 8578563 | Spacer, Thrust-cam |
|
$ 5.51 | |||||
| 11 | 8577284 | Auger, Agitator |
|
- | |||||
| 12 | 8566279 | Spacer, Thrust |
|
- | |||||
| 13 | W10076190 | Agitator |
|
- | |||||
| 14 | WP8533953 | Screw, 8-16 X 1.000 (6) (Replaces: 8533953) |
|
Immediately | $ 7.55 | ||||
| 15 | W10820039 | Hub, Basket-driven (includes Item 16) (Replaces: W10118114) |
|
Immediately | $ 38.88 | ||||
| 16 | W10820039 | Hub, Basket-driver (includes Item 15) (Replaces: 8545953) |
|
Immediately | $ 38.88 | ||||
| 17 | WPW10321522 | Basket Assembly (includes Items 14, 15, & 16) (Replaces: W10118180) |
|
$ 905.92 | |||||
| 18 | W10193886 | Tub & Drive Shaft Assembly (Replaces: W10128830) |
|
$ 763.01 | |||||
| 19 | 8566197 | Filter, Dual Pump Hood |
|
- | |||||
| 20 | WP8533928 | Screw, 8-18 X 3/4 (2) (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 21 | 8565172 | Tub, Buffer (set Of 4) |
|
- | |||||
| 22 | W10137698 | Shield, Drive Motor (includes Item 21) |
|
$ 37.16 | |||||
| 23 | WP8557836 | Plate, Stator (set Of 2) (Replaces: 8557836) |
|
Immediately | $ 110.55 | ||||
| 24 | WPW10178988 | Rps Assembly (Replaces: W10137685) |
|
Immediately | $ 49.28 | ||||
| 25 | WPW10419333 | Stator, Motor (includes Item 23) (Replaces: 8565170) |
|
Immediately | $ 349.42 | ||||
| 26 | 8534042 | Screw, 1/4-20 X .968 (4) |
|
$ 5.65 | |||||
| 27 | 280146 | Rotor, Main Drive Motor (includes Item 28) (Replaces: 8565177) |
|
Immediately | $ 343.68 | ||||
| 29 | WP353244 | Hose Pressure Switch (Replaces: 8572540) |
|
Immediately | $ 86.67 | ||||
| 30 | W10137697 | Harness, Lower (includes Item 29) |
|
$ 113.67 | |||||
| 31 | W10005430 | Clamp, Pressure Hose Retainer |
|
Immediately | $ 9.53 | ||||
| 32 | 8533957 | Screw, 10-16 X 1/2 |
|
$ 12.60 |
