SELECT A DIAGRAM

01 - Top And Cabinet Parts


02 - Control Panel Parts


03 - Motor, Basket And Tub Parts

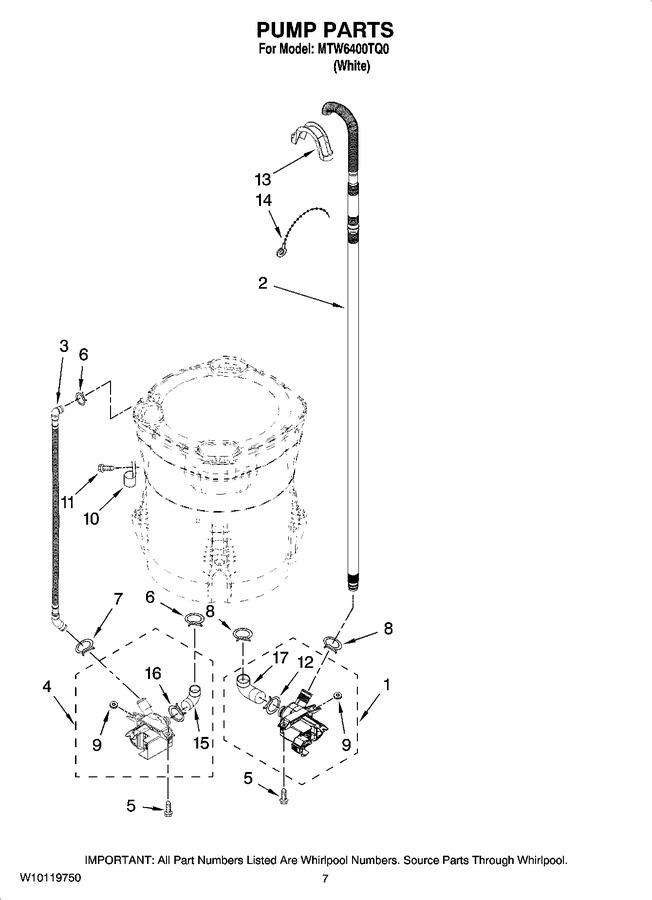

04 - Pump Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10536347		Pump Assembly, Drain   (Replaces: W10049390)			Immediately	$ 149.05
2	WPW10363893		Hose, Drain   (Replaces: 8571715)			Immediately	$ 59.24
3	WP8543774		Hose, Recirc   (Replaces: 8543774)				$ 71.26
4	W10049400		Pump Assembly, Recirc		Appelez-nous	-
5	WPW10004910		Screw, 10-14 X 1.000   (Replaces: 8534063)				$ 7.55
6	WP285655		Clamp, Hose   (Replaces: 370449)			Immediately	$ 7.93
7	WP8269146		Clamp, Hose   (Replaces: 8269146)				$ 7.73
8	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.93
9	8182771		Grommet, Pump Mounting (4)		Appelez-nous	-
10	8534021		Clamp, Recirc Hose Retainer				$ 7.97
11	WPW10109200		Screw, 10-16 X 3/4   (Replaces: 8533943)			Immediately	$ 7.92
12	WP285655		Clamp, Drain Pump Hose   (Replaces: 8182768)			Immediately	$ 7.93
13	WP8576642		Retainer, Drain Hose   (Replaces: 8576642)				$ 88.38
14	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.47
15	WP8182769		Hose, Recirc Pump   (Replaces: 8182769)				$ 37.04
16	WP3367052		Clamp, Recirc Pump Hose   (Replaces: 8182770)				$ 8.19
17	WP8182767		Hose, Drain Pump   (Replaces: 8182767)				$ 23.73
	WP384496		Coupling, Hose   (Replaces: 384496)				$ 81.35
	WP285195		Sealer, Gasket (.20 Fl. Oz.) (6 Ml)   (Replaces: 285195)			Immediately	$ 98.65
	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
	350938		Paint, Pressurized Spray (12 Oz.) (primer, Gray)		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) ( White)			Immediately	$ 36.11
	799344		Paint, Bulk (1 Qt.) (white (uncut))				$ 237.46
	285442		Connector Kit, Plastic Drain Hose				$ 88.85
	285321		Sleeve Kit, (contains 2 Sleeves)				$ 79.30
	76660		Siphon Break Kit   (Replaces: 285320)			Immediately	$ 125.92
	367031		Drain Protector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
