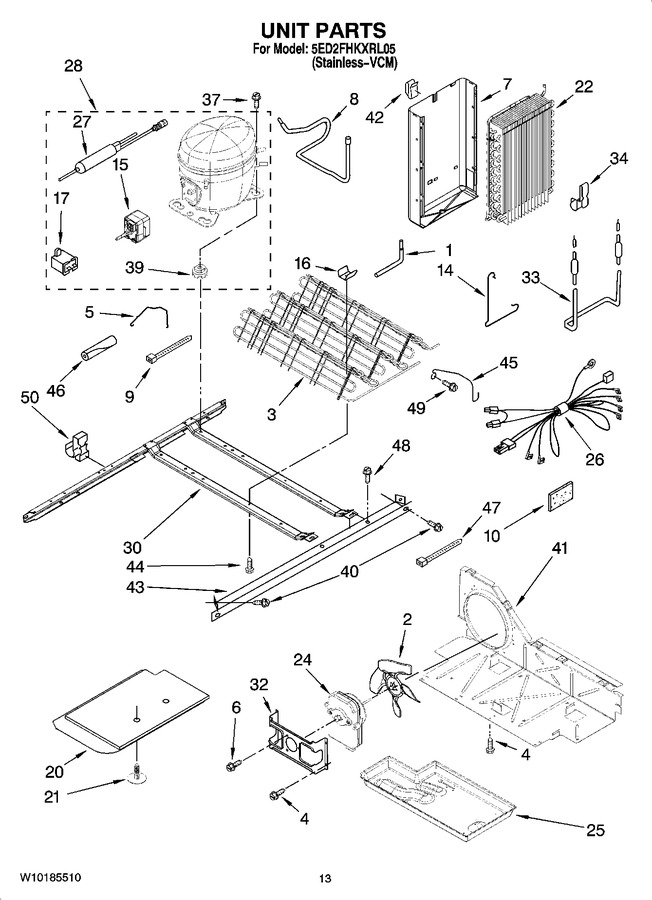

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2325479 | Tube, Process |
|
- | |||||
| 2 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 25.19 | ||||
| 3 | 2324712 | Condenser Assembly (Replaces: W10121484) |
|
$ 323.45 | |||||
| 4 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 8.38 | ||||
| 5 | 2302129 | Strap, Bale |
|
- | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 11.21 | |||||
| 7 | 2304288 | Heat Shield |
|
- | |||||
| 8 | 2205764 | Tube Suction |
|
$ 89.18 | |||||
| 9 | WP2205813 | Wire Tie (Replaces: 2205813) |
|
$ 8.11 | |||||
| 10 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 14 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 15 | WP2312007 | Start-device, Combination (start Relay And Overload) For Production & Srvc Compressor (Replaces: 2312007) |
|
$ 189.69 | |||||
| 16 | W10683556 | Clip, Condenser (Replaces: 2216914) |
|
$ 19.38 | |||||
| 17 | 2321245 | Capacitor |
|
- | |||||
| 20 | W11115203 | Unit Cover, Bottom (Replaces: 2304898) |
|
$ 543.81 | |||||
| 21 | 489396 | Clip |
|
$ 11.26 | |||||
| 22 | WP2188822 | Evaporator (Replaces: 2188822) |
|
Immediately | $ 356.84 | ||||
| 24 | WP2321271 | Motor, Fan (Replaces: 2321271) |
|
$ 325.47 | |||||
| 25 | WPW10614158 | Tray, Evaporator (Replaces: 1105523) |
|
Immediately | $ 158.16 | ||||
| 26 | W10129772 | Harness, Unit |
|
- | |||||
| 27 | W10843121 | Drier (production) (Replaces: 2319825) |
|
Immediately | $ 57.13 | ||||
| 27 | WPW10143759 | Drier (service) (Replaces: W10143759) |
|
Immediately | $ 30.78 | ||||
| 28 | W10183407 | Compressor (includes Items 15, 17, 27, & 39) (Replaces: W10120455) |
|
$ 435.61 | |||||
| 30 | 2304903 | Unit Mounting Frame |
|
$ 244.68 | |||||
| 32 | WP2181929 | Bracket, Fan Motor (Replaces: 2181929) |
|
$ 12.93 | |||||
| 33 | WPW10123612 | Heater, Defrost (Replaces: W10123612) |
|
$ 87.75 | |||||
| 34 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 37 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 39 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 39 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 40 | 489340 | Screw |
|
- | |||||
| 41 | W10896764 | Air Baffle (Replaces: 2196202) |
|
$ 101.20 | |||||
| 42 | 2155547 | Clip, Heat |
|
- | |||||
| 43 | 2149718 | Unit Mounting Rail |
|
- | |||||
| 44 | W11544659 | Screw (Replaces: 8281232) |
|
$ 14.35 | |||||
| 45 | 1105612 | Guard, Fan |
|
$ 42.61 | |||||
| 46 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 21.32 | ||||
| 47 | WPW10339879 | Wire Tie (Replaces: 2172840) |
|
$ 8.30 | |||||
| 48 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 49 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 50 | 2208280 | Clip, Wire & Tube |
|
- | |||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | |||||
| 542639 | Miscellaneous (cement, Alumilastic (1-1/4 Oz.)) |
|
- | ||||||
| 833938 | Miscellaneous (kit, Terminal Connector) |
|
$ 8.47 | ||||||
| 799833 | Miscellaneous (kit, Evaporator Repair (aluminum Epoxy)) |
|
- | ||||||
| 479502 | Miscellaneous (tape, Vinyl (3/4 X 108``)) |
|
$ 66.77 | ||||||
| 212643 | Miscellaneous (sealer, Gum (4 Feet)) |
|
Immediately | $ 96.42 | |||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 799340 | Paint, Bulk (1qt.) (black) |
|
- | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 40.12 | |||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 94.14 | ||||||
| WP542638 | Miscellaneous (grease, Silicone (1/2 Oz.)) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 137.25 | ||||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 18.65 | ||||||
| WP503695 | Miscellaneous (cork, Sealer (1/4 Pound)) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Miscellaneous (sealer, Mastic (1 Qt.)) (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| WPW10190943 | Field Installable Ice Maker (3eckmf87) (Replaces: 1129317) |
|
$ 397.04 |
