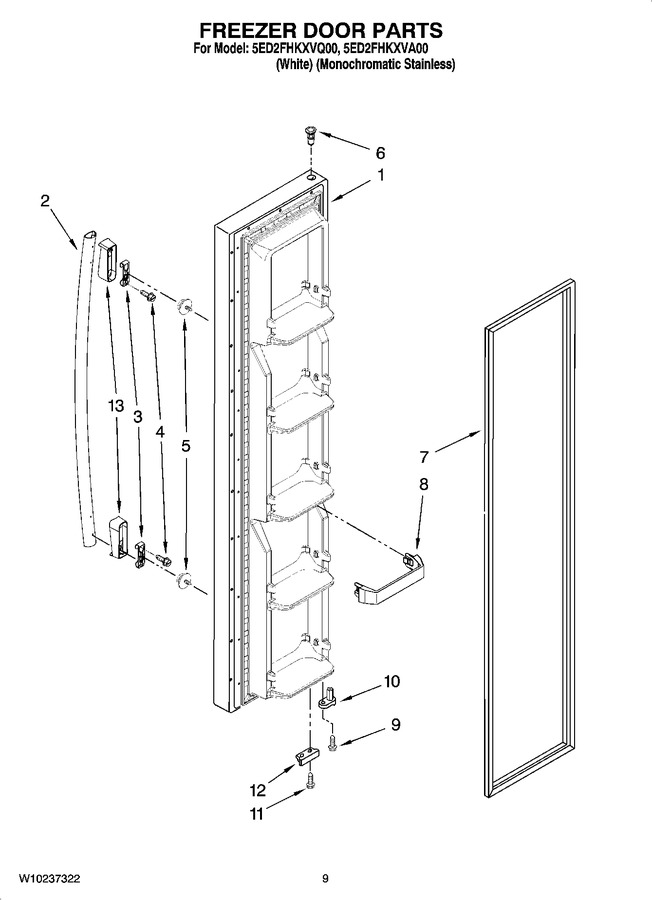

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309925LA		Freezer Door (includes Item 7) (stainless/satina)		Appelez-nous	-
1	2327074W		Freezer Door (includes Item 7) (white)		Appelez-nous	-
2	2313345W		Handle		Appelez-nous	-
2	WPW10127761K		White   (Replaces: W10127765)				$ 196.00
2	W10273555		Stainless/satina   (Replaces: W10127768)				$ 197.28
3	WP2255411		Clip   (Replaces: 2255411)				$ 36.55
4	WP8533988		Screw   (Replaces: W10155511)			Immediately	$ 8.78
5	WPW10288153		Screw   (Replaces: W10129563)			Immediately	$ 9.65
6	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
7	W10136733		Door Gasket, Magnetic (service) (apollo Grey)   (Replaces: 2327162)				$ 358.98
7	2159072		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2309604)				$ 323.60
8	WP2156021		Trivet   (Replaces: 2156021)				$ 66.43
9	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 7.20
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
13	W10152862		Endcap (nickel Alloy)		Appelez-nous	-
13	W10127769		Endcap (white)		Appelez-nous	-
