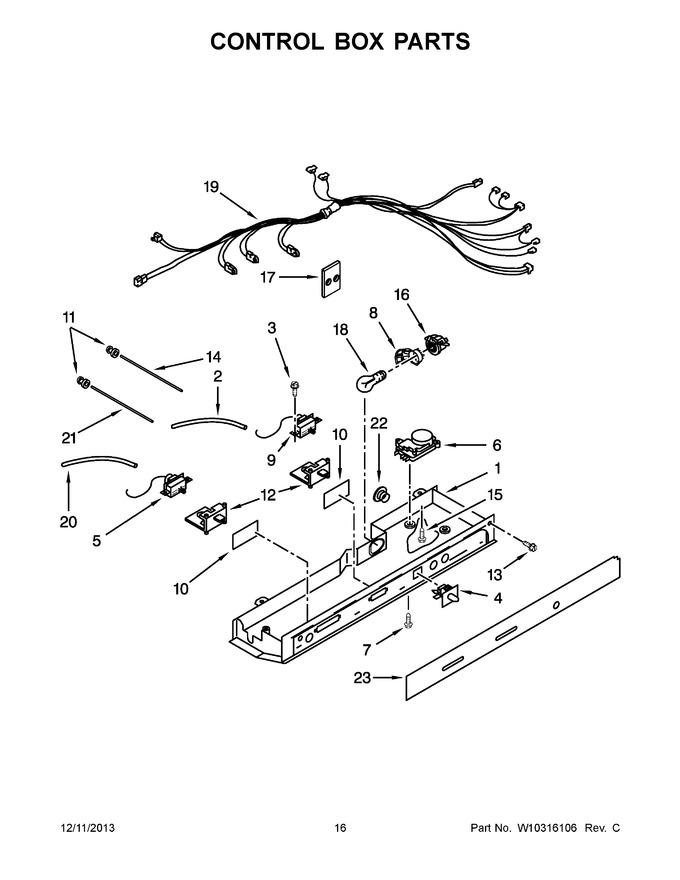

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Box, Control		Appelez-nous	-
2	WP2196003		Tube, Thermostat Barrier   (Replaces: 2182150)				$ 8.35
3	2006254		Screw   (Replaces: 489214)				$ 13.79
4	WP2149705		Switch, Light   (Replaces: 2321287)			Immediately	$ 45.66
5	WP2321289		Thermostat (freezer)   (Replaces: 2321289)				$ 241.70
6	WP2188379		Timer, Defrost   (Replaces: 2321261)				$ 203.07
7	489392		Screw   (Replaces: 489398)				$ 14.02
8	W10119914		Shroud, Light Socket		Appelez-nous	-
9	WP2321305		Thermostat (refrigerator)   (Replaces: 2321305)				$ 253.83
10	2172940		Window, Control Box		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
14	2179920		Fiber, Light Optic				$ 37.08
15	WP488488		Screw   (Replaces: 489290)				$ 8.52
16	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
17	W10173095		Shield, Heat		Appelez-nous	-
18	WP67002552		Bulb, Light   (Replaces: 851682)			Immediately	$ 12.34
19	W10129766		Harness, Control Box		Appelez-nous	-
20	WP2196003		Tube, Thermostat Barrier   (Replaces: 2196003)				$ 8.35
21	2179921		Fiber, Light Optic		Appelez-nous	-
22	940014		Plug, Hole				$ 18.33
23	W10239827		Escutcheon Control Box		Appelez-nous	-
