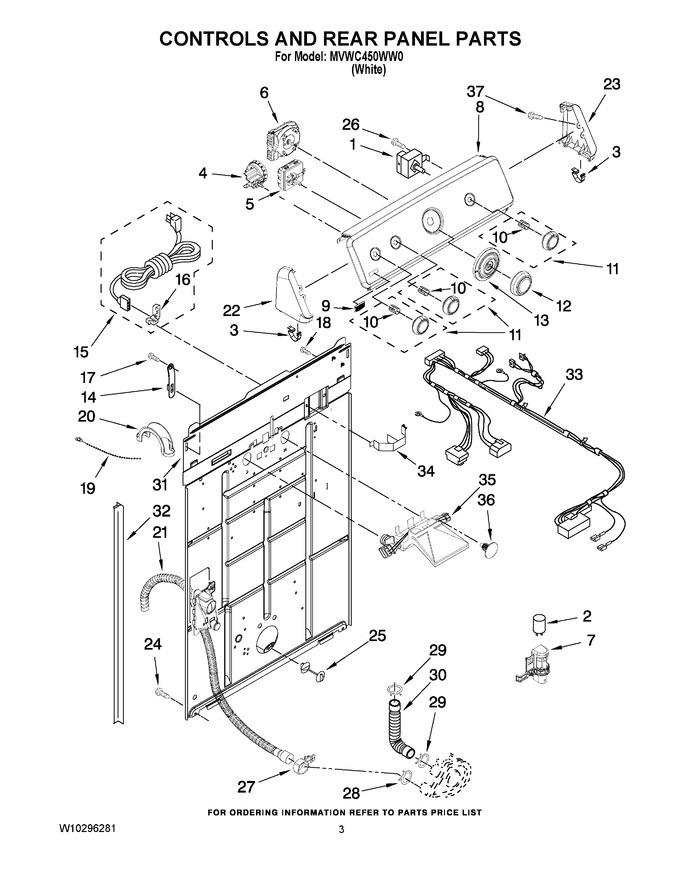

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10168257 | Switch, Rotary (Replaces: 3949180) |
|
$ 140.00 | |||||
| 2 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 97.60 | ||||
| 3 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 4 | W10339251 | Switch, Water Level (Replaces: 8577844) |
|
Immediately | $ 307.01 | ||||
| 5 | W10202616 | Switch, Water Temperature (atc) |
|
$ 69.93 | |||||
| 6 | WPW10175557 | Timer (motor Not A Service Part) (Replaces: W10175557) |
|
$ 367.44 | |||||
| 7 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 8 | W10089723 | Panel, Control (includes Item 9) |
|
- | |||||
| 9 | W10101390 | Badge, Assembly |
|
- | |||||
| 10 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 11 | WPW10180218 | Knob, Control (Replaces: W10180218) |
|
$ 45.82 | |||||
| 12 | WPW10180213 | Knob, Timer (Replaces: W10180213) |
|
$ 44.31 | |||||
| 13 | W10180214 | Dial, Timer |
|
$ 23.85 | |||||
| 14 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 8.17 | |||||
| 15 | W10820044 | Cord, Power (includes Item 16) (Replaces: 8578842) |
|
$ 149.87 | |||||
| 16 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 17 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 18 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 19 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 8.30 | |||||
| 20 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 8.37 | |||||
| 21 | WPW10189267 | Drain Hose Assembly (includes Item 28) (Replaces: W10189267) |
|
$ 70.58 | |||||
| 22 | WPW10193824 | Cap, End (l.h.) (includes Item 3) (Replaces: W10193824) |
|
$ 74.39 | |||||
| 23 | WPW10193821 | Cap, End (r.h.) (includes Item 3) (Replaces: W10193821) |
|
$ 74.72 | |||||
| 24 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 8.25 | |||||
| 25 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 19.85 | ||||
| 26 | 3400073 | Screw, Ground |
|
- | |||||
| 27 | 8541668 | Clamp, Hose |
|
$ 22.32 | |||||
| 28 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.81 | ||||
| 29 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 8.58 | ||||
| 30 | 285871 | Hose, Pump To Tub (includes Item 29) (Replaces: 3951449) |
|
Immediately | $ 28.99 | ||||
| 31 | WPW10194450 | Panel, Rear (Replaces: W10194450) |
|
$ 353.45 | |||||
| 32 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 27.57 | |||||
| 33 | W10214215 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- | |||||
| 34 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 35 | WPW10144820 | Valve, Water Inlet W/thermistor & Vacuum Break (Replaces: W10144820) |
|
Immediately | $ 81.02 | ||||
| 36 | W10000080 | Clip, Push-in Retainer |
|
- | |||||
| 37 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.76 |
