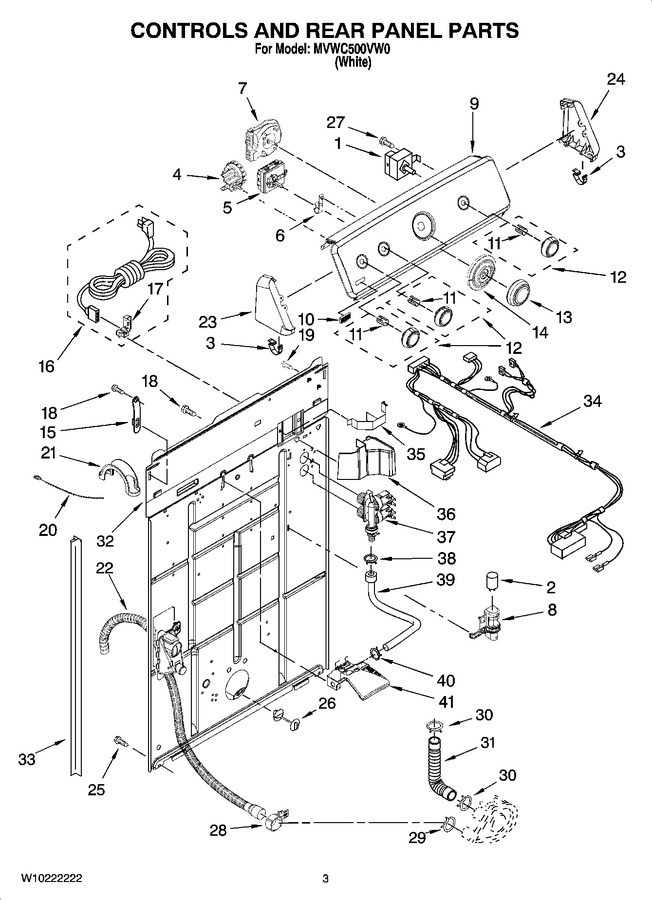

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10168262 | Switch, Rotary (Replaces: 3949187) |
|
$ 122.63 | |||||
| 2 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 87.84 | ||||
| 3 | WP8312709 | Clip-console (2) (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 4 | W10339251 | Switch, Water Level (Replaces: 8577844) |
|
Immediately | $ 276.31 | ||||
| 5 | W10202616 | Switch, Water Temperature (atc) |
|
$ 69.93 | |||||
| 6 | 8317975 | Retainer, Harness |
|
$ 5.86 | |||||
| 7 | WPW10111389 | Timer (motor Not A Service Part) (Replaces: W10111389) |
|
Immediately | $ 332.17 | ||||
| 8 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 9 | W10089724 | Panel, Control (includes Item 10) |
|
$ 219.68 | |||||
| 10 | W10101390 | Badge, Assembly |
|
- | |||||
| 11 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WPW10180218 | Knob, Control (Replaces: W10180218) |
|
$ 41.24 | |||||
| 13 | WPW10180213 | Knob, Timer (Replaces: W10180213) |
|
$ 39.88 | |||||
| 14 | W10180214 | Dial, Timer |
|
$ 23.85 | |||||
| 15 | WP8568314 | Strap, Console (Replaces: 8568314) |
|
$ 7.35 | |||||
| 16 | W10820044 | Cord, Power (Replaces: 8578842) |
|
$ 134.88 | |||||
| 17 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 18 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 19 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 20 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.47 | |||||
| 21 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.53 | |||||
| 22 | WPW10189267 | Drain Hose Assembly (includes Item 28) (Replaces: W10189267) |
|
$ 63.52 | |||||
| 23 | WPW10193824 | Cap, End (l.h.) (includes Item 3) (Replaces: W10193824) |
|
$ 66.95 | |||||
| 24 | WPW10193821 | Cap, End (r.h.) (includes Item 3) (Replaces: W10193821) |
|
$ 67.25 | |||||
| 25 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.43 | |||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.87 | ||||
| 27 | 3400073 | Screw, Ground |
|
- | |||||
| 28 | 8541668 | Clamp, Hose |
|
$ 20.09 | |||||
| 29 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.72 | ||||
| 31 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 26.09 | ||||
| 32 | W10194449 | Panel, Rear |
|
- | |||||
| 33 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 24.81 | |||||
| 34 | W10113813 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
$ 112.46 | |||||
| 35 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 36 | 8314879 | Shield, Suds |
|
- | |||||
| 37 | WP3979346 | Valve, Water Inlet & Thermistor Assy. (Replaces: 3979347) |
|
Immediately | $ 81.11 | ||||
| 38 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 7.94 | ||||
| 39 | WPW10190501 | Hose, Vacuum Break (Replaces: W10190501) |
|
$ 42.58 | |||||
| 40 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 7.94 | ||||
| 41 | WPW10190514 | Break, Vacuum (Replaces: W10190514) |
|
$ 88.11 |
