SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Optional

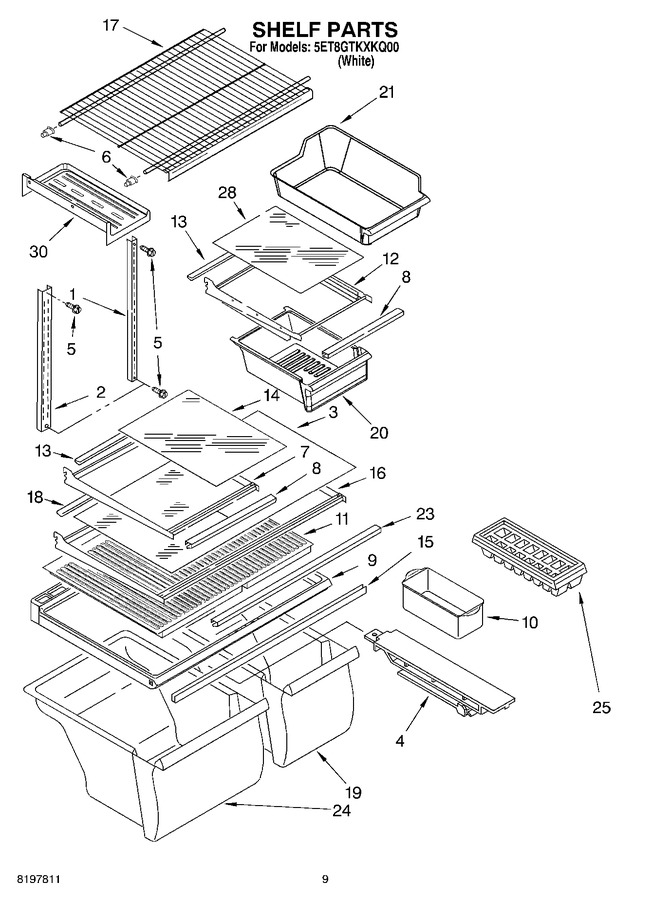

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	2177824		Glass, Full Shelf				$ 139.59
4	WP2163835		Track, Crisper   (Replaces: 2163835)			Immediately	$ 36.48
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
6	WPW10130299		Cup, Shelf Mounting   (Replaces: 2163762)			Immediately	$ 14.70
7	2201101		Shelf, Cantilever				$ 76.57
8	2188525		Trim, Shelf		Appelez-nous	-
9	WP2314548		Cover, Crisper   (Replaces: 2195342)				$ 259.83
10	W10136387A		Egg Bin   (Replaces: 2216625)				$ 19.54
11	WP2169921		Insert, Crisper Cover   (Replaces: 2169921)				$ 258.93
12	2201105		Pan Shelf, Cantilever				$ 78.45
13	WP2188689		Trim, Rear   (Replaces: 2188520)				$ 121.55
14	2201101E		Glass Shelf		Appelez-nous	-
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 102.08
16	2201103		Shelf, Full Cantilever				$ 88.86
17	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 123.40
18	WP2188689		Trim, Shelf Rear   (Replaces: 2188522)				$ 121.55
19	W10856580		Pan, Crisper   (Replaces: 2218123)			Immediately	$ 177.03
20	2200920K		Pan, Meat				$ 81.92
21	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
23	2188527		Trim, Front		Appelez-nous	-
24	W10854037		Pan, Crisper   (Replaces: 2218124)			Immediately	$ 179.19
25	WP841180A		Ice Tray (2)   (Replaces: 841180)			Immediately	$ 47.84
28	2169917		Glass, Shelf				$ 84.17
30	1129316		Eckmf87   (Replaces: 1114209)			Immediately	$ 149.11
30	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
30	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
30	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
30	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
30	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
30	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
30	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
30	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
30	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
30	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
30	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
30	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
30	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
30	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
30	833938		Kit, Terminal Connector				$ 8.47
30	1117510		Torx Key				$ 5.84
30	2212770		Shelf, Ice Tray				$ 65.17
30	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
30	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
30	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
30	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
30	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
30	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
30	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
30	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
30	350942		Primer White (13 Oz. Spray Can)				$ 94.14

    View Diagram in Separate Window       Print Part List
