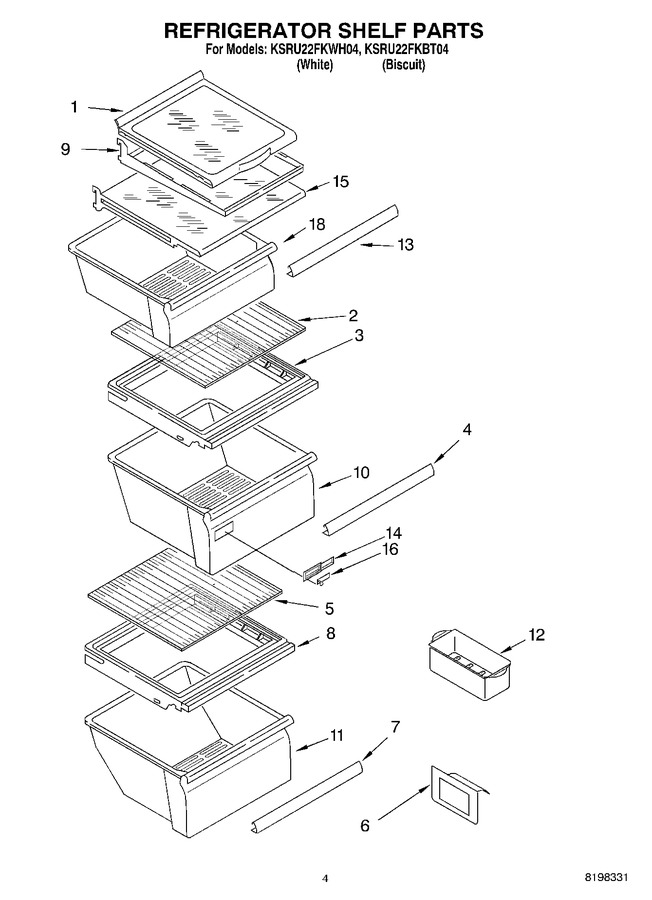

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216102		Shelf (2)		Appelez-nous	-
2	W10864399		Glass, Cover   (Replaces: 2206097)				$ 208.83
3	W10508993		Cover, Crisper   (Replaces: 2217123)				$ 275.27
4	WP2179234		Trim, Pan   (Replaces: 2194913)				$ 79.71
5	W10864399		Glass, Cover   (Replaces: 2179259)				$ 208.83
6	2179350		Deflector				$ 77.30
7	WP2179234		Trim, Meat Pan   (Replaces: 2194906)				$ 79.71
8	2217039		Cover, Meat Pan		Appelez-nous	-
9	2195975		Frame, Shelf				$ 84.01
10	WP2188656		Crisper Pan   (Replaces: 2196160)				$ 128.90
11	WP2188664		Meat Pan   (Replaces: 2196162)			Immediately	$ 83.43
12	W10136387A		Bin, Egg   (Replaces: 2216624)				$ 17.59
13	WP2179243		Trim, Snack Pan   (Replaces: 2179243)				$ 98.69
14	WP2179343		Front, Crisper Pan   (Replaces: 2179343)				$ 30.62
15	2206346		Shelf, Snack Bin		Appelez-nous	-
16	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 27.54
18	W11497323		Snack Bin   (Replaces: 2196163)				$ 211.36
