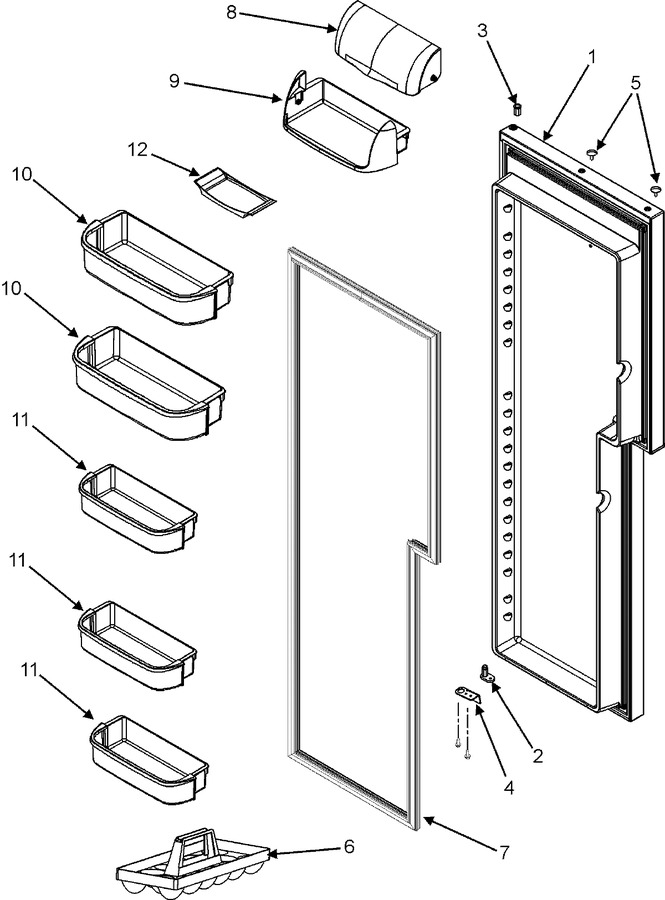

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67007030		Door Assy., Ref. Foam (wht)	10			$ 168.89
2	67006134		Closure, Door (blk)	10	Appelez-nous	-
3	67004976		Bushing, Door (blk)	10	Appelez-nous	-
4	67006517		Stop, Door (wht)	10	Appelez-nous	-
4	67006672		Screw	10	Appelez-nous	-
5	M0311605		Plug, Button (wht)	10	Appelez-nous	-
6	60066-1		Tray, Egg	10	Appelez-nous	-
7	67003970		Gasket, Ref. Door (wht)	10	Appelez-nous	-
8	67003973		Door, Dairy	10	Appelez-nous	-
9	67003974		Tray, Dairy	10	Appelez-nous	-
10	67007031		Bucket, Ref. Door (gal)	10	Appelez-nous	-
11	67004965		Bucket, Ref. Door (gal)	10	Appelez-nous	-
12	29936-2		Tray, Butter	10	Appelez-nous	-
