| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
67004162 |
|
Shelf, Crisper Topx |
10 |
Appelez-nous
|
- |
|
|
|
| 2 |
67004077 |
|
Frame, Crisper Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 3 |
67004076 |
|
Glass, Crisper Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 4 |
67004163 |
|
Frame, Meat Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 5 |
67004164 |
|
Glass, Meat Shelf |
10 |
Appelez-nous
|
- |
|
|
|
| 6 |
67004165 |
|
Pan Assy., Sm Crisper |
10 |
Appelez-nous
|
- |
|
|
|
| 7 |
67004166 |
|
Pan Assy., Lg Crisper |
10 |
Appelez-nous
|
- |
|
|
|
| 8 |
67004167 |
|
Pan Assy., Meat |
10 |
Appelez-nous
|
- |
|
|
|
| 9 |
67004168 |
|
Slide, Control |
10 |
Appelez-nous
|
- |
|
|
|
| 10 |
WP12603701 |
 |
Support, Crisper Frame (Replaces: 12603701) |
10 |
|
|
$ 10.83 |
|
|
| 11 |
67004169 |
 |
Roller, Crisper |
10 |
|
|
$ 5.81 |
|
|
| 12 |
67006692 |
 |
Screw, Shoulder (Replaces: M0238105) |
10 |
|
|
$ 10.79 |
|
|
| 13 |
67004170 |
|
Pillar (lt) |
10 |
Appelez-nous
|
- |
|
|
|
| 14 |
67004171 |
|
Pillar (rt) |
10 |
Appelez-nous
|
- |
|
|
|
| 15 |
67004172 |
|
Seal, Crisper Frame (frt) |
10 |
Appelez-nous
|
- |
|
|
|
| 16 |
67004173 |
|
Seal, Crisper Frame (rear) |
10 |
Appelez-nous
|
- |
|
|
|
| 17 |
67004133 |
|
Roller, Pan |
10 |
Appelez-nous
|
- |
|
|
|
| 18 |
67004174 |
 |
Pin, Roller |
10 |
|
|
$ 6.11 |
|
|
| 19 |
67004175 |
|
Housing, Temp. Control |
10 |
Appelez-nous
|
- |
|
|
|
| 20 |
67004176 |
|
Slide, Temp. Control |
10 |
Appelez-nous
|
- |
|
|
|
| 21 |
67004177 |
|
Gasket, Temp. Control |
10 |
Appelez-nous
|
- |
|
|
|

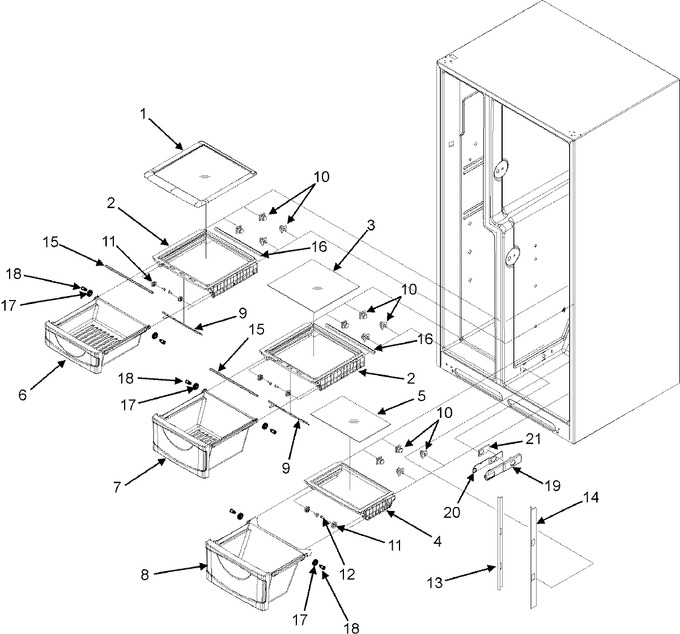

View Diagram in Separate Window
