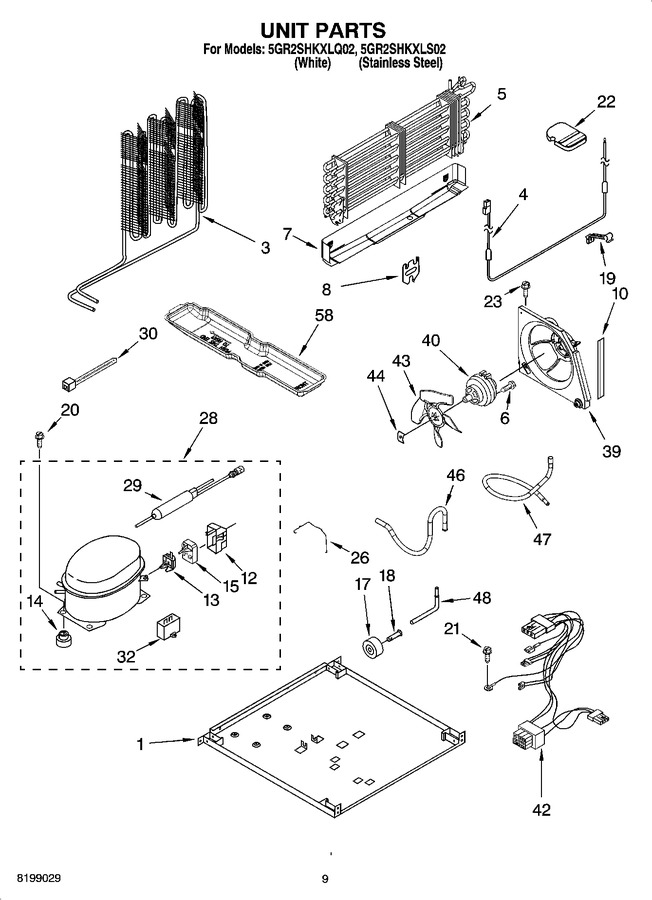

05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2225596 | Plate, Unit Mounting |
|
- | |||||
| 3 | 2214960 | Condenser |
|
$ 141.57 | |||||
| 4 | 2166872 | Heater, Defrost |
|
- | |||||
| 5 | 2254249 | Evaporator Assy |
|
$ 239.15 | |||||
| 6 | WP8281196 | Screw (Replaces: 489494) |
|
Immediately | $ 7.55 | ||||
| 7 | 2254295 | Drain Pan |
|
$ 74.91 | |||||
| 8 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 12 | WP61002138 | Cover (service Only) (Replaces: 4387959) |
|
$ 9.21 | |||||
| 13 | 4388786 | Overload (service Only) (Replaces: 4388101) |
|
- | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 7.79 | |||||
| 15 | 2302128 | Start-device, Combination (start Relay And Overload For Production Compressor Only) |
|
- | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Rivet (Replaces: 2221797) |
|
Immediately | $ 19.12 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 7.79 | |||||
| 21 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 22 | 2201185 | Support Block |
|
$ 8.21 | |||||
| 23 | 3400518 | Screw |
|
$ 13.63 | |||||
| 26 | 2302129 | Strap, Compressor |
|
- | |||||
| 28 | W10183407 | Compressor (includes Items 12,13,14,15, 29 & 32) (Replaces: 2187162) |
|
$ 435.61 | |||||
| 29 | W10843121 | Drier (production) (Replaces: 2199167) |
|
Immediately | $ 57.13 | ||||
| 29 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 8.30 | |||||
| 32 | WP2201147 | Capacitor (service) (Replaces: 4387874) |
|
$ 135.42 | |||||
| 32 | 2321245 | Capacitor (production) (Replaces: 2254217) |
|
- | |||||
| 39 | 2302250 | Air Baffle |
|
$ 109.95 | |||||
| 40 | 8201703 | Motor, Condenser (Replaces: 2188539) |
|
$ 371.70 | |||||
| 42 | 2187586 | Wire Assy. Unit |
|
- | |||||
| 43 | 2190685 | Fan, Blade |
|
$ 52.00 | |||||
| 44 | WP486692 | Nut (Replaces: 486692) |
|
$ 8.43 | |||||
| 46 | 2205533 | Tube, Discharge |
|
- | |||||
| 47 | 2214924 | Tube, Suction |
|
$ 103.20 | |||||
| 48 | 2154109 | Tube, Process |
|
$ 76.26 | |||||
| 58 | N/A | Refrigerant Charge 4.0 Ozs. (r134a) |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 58 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 58 | 8201826 | Evaporator Tray (Replaces: 2300635) |
|
$ 164.78 | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 18.65 | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- |
