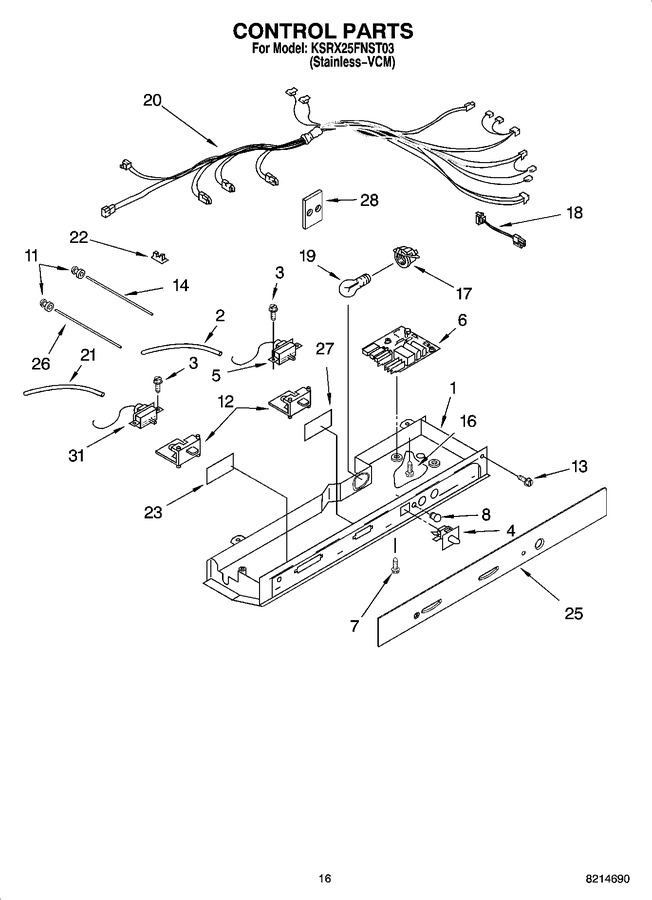

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2216588		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat   (Replaces: 2182150)				$ 7.52
3	2006254		Screw (3)   (Replaces: 489214)				$ 12.41
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 41.09
5	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 234.99
6	WPW10366605		Electronic Control   (Replaces: 2303822)			Immediately	$ 281.55
7	489392		Screw (2)   (Replaces: 489398)				$ 12.62
8	2200096		Cover, Light Lens				$ 64.10
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 20.05
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 7.25
14	2179920		Light Bar (rc)				$ 37.08
16	WP488488		Screw (2)   (Replaces: 489290)				$ 7.67
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 104.10
18	W10853646		Harness, Indicator Light   (Replaces: 2213462)				$ 117.72
19	W11679940		Light Bulb   (Replaces: 2255743)			Immediately	$ 10.17
20	2216587		Control Box Harness		Appelez-nous	-
21	WP2196003		Tube, Barrier Thermostat   (Replaces: 2196003)				$ 7.52
22	1115375		Clip, Wiring				$ 11.15
23	2172941		Window		Appelez-nous	-
25	2301067		Cover, Front Control		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172940		Window		Appelez-nous	-
28	2172931		Heat Shield Filter Indicator				$ 66.51
31	WP2182770		Thermostat (fc)   (Replaces: 2161461)			Immediately	$ 213.86
