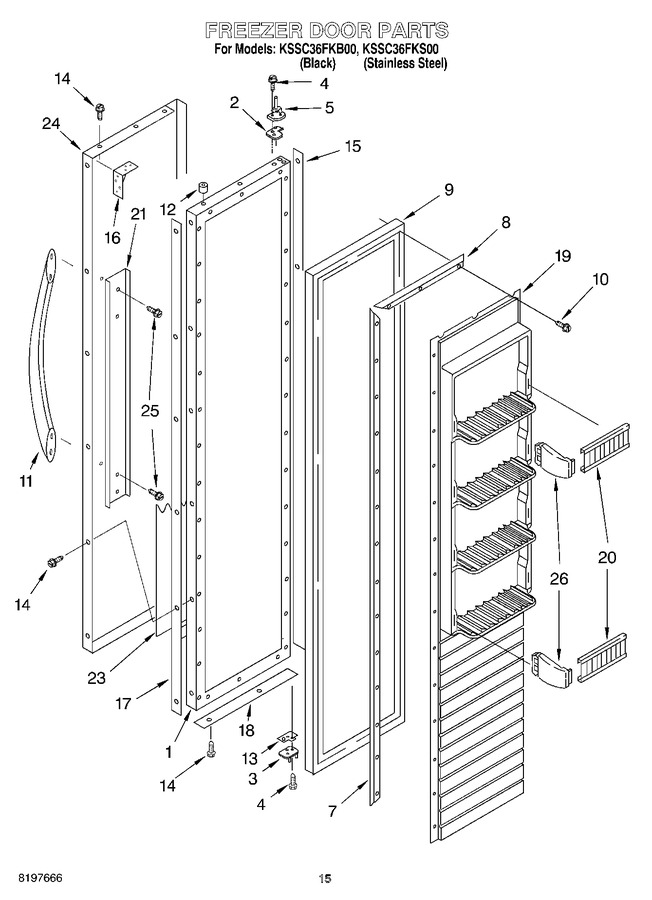

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2215975		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2004520		Spacer-door, Top		Appelez-nous	-
3	2220810		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
5	2220922		Hinge, Top		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112538		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188495		Door Gasket, Magnetic		Appelez-nous	-
10	W11624204		Screw (34)   (Replaces: 486194)				$ 13.25
11	2209095B		Handle, Door (black)		Appelez-nous	-
11	2005290		Handle, Door (stainless Steel)				$ 130.36
12	2005433		Spacer, Top				$ 21.00
13	2004549		Door, Spacer		Appelez-nous	-
14	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.32
14	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.28
15	2005030		Spacer, Hinge Side		Appelez-nous	-
16	2004447		Door Brace, Corner		Appelez-nous	-
17	2221012		Spacer, Handle Side		Appelez-nous	-
18	2004931		Spacer, Door Skin Bottom		Appelez-nous	-
19	2209030		Interior Door Panel		Appelez-nous	-
20	2209163		Trim-shelf, Door		Appelez-nous	-
21	2209202		Plate, Door Handle		Appelez-nous	-
23	2005324		Filler, Door		Appelez-nous	-
24	2209097B		Door Skin (black)		Appelez-nous	-
24	2006774		Door Skin (stainless Steel)		Appelez-nous	-
25	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
26	2209134		Trim, End Cap (right Side)				$ 10.05
26	2208954		Trim, Endcap (left Side)				$ 5.84

    View Diagram in Separate Window       Print Part List
