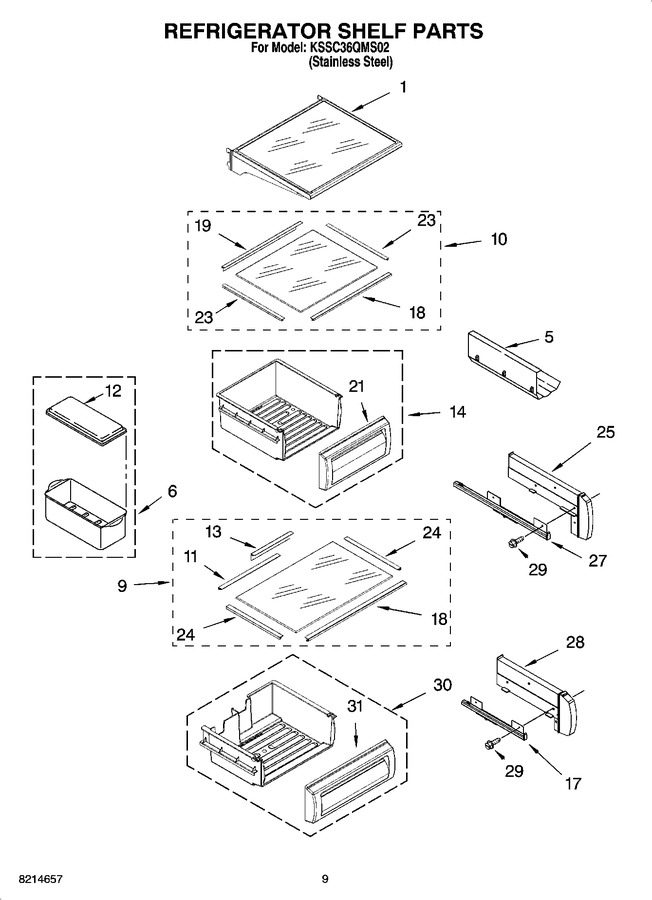

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222591		Shelf Assembly		Appelez-nous	-
5	W10777924		Rack, Wine   (Replaces: 2179404)				$ 22.30
6	WP2221071A		Egg Bin   (Replaces: 2221071)				$ 23.21
9	2302841		Meat Pan Cover Assembly		Appelez-nous	-
10	2302834		Crisper Cover Assembly		Appelez-nous	-
11	2257611		Trim, Glass Rear Side		Appelez-nous	-
12	2169935		Cover		Appelez-nous	-
13	2257581		Trim, Glass Rear		Appelez-nous	-
14	W10407623		Crisper Pan (2)   (Replaces: 2252411)		Appelez-nous	-
17	2302955		Slide, Meat Pan (right Side)				$ 308.86
17	2302954		Slide, Meat Pan (left Side)				$ 309.14
19	2256253		Trim, Glass Rear		Appelez-nous	-
21	WP2256247		Front, Crisper Pan   (Replaces: 2256247)				$ 119.90
23	2252255		Trim, Glass (side) (crisper Pan)		Appelez-nous	-
24	2256250		Trim, Glass (side) (meat Pan)		Appelez-nous	-
25	2256222		Spacer, Crisper (right Side) (2)				$ 80.32
25	2256223		Spacer, Crisper (left Side) (2)				$ 76.04
27	2302956		Slide, Crisper (left Side) (2)				$ 268.86
27	2302957		Slide, Crisper (right Side) (2)				$ 205.50
28	2256243		Spacer, Meat Pan (left Side)				$ 74.74
28	2256244		Spacer, Meat Pan (right Side)				$ 93.33
29	WP8533928		Screw (left Side)   (Replaces: 8533928)			Immediately	$ 7.43
29	W11830745		Screw (right Side)   (Replaces: 8533929)		Appelez-nous	-
30	W10407626		Pan Assembly Meat   (Replaces: 2256368)		Appelez-nous	-
31	WP2256365		Front, Meat Pan   (Replaces: 2256365)				$ 156.16
