SELECT A DIAGRAM
New Model Search:

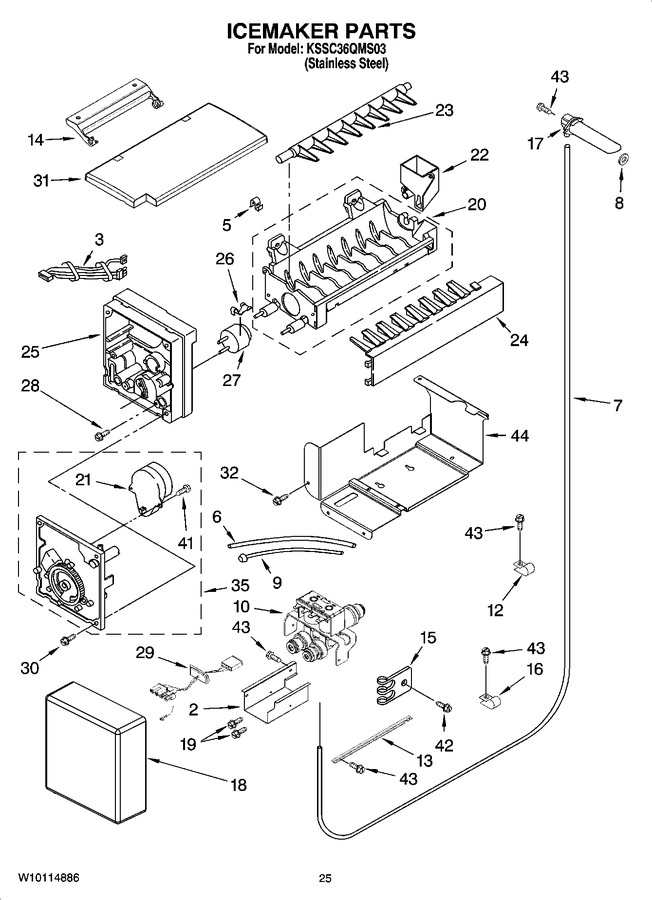

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2320598 | Shield, Valve Electrical |
|
- | |||||
| 3 | 2310192 | Wire Assembly, Icemaker |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 6 | 2320654 | Tube, Filter Inlet |
|
$ 54.75 | |||||
| 7 | 2320658 | Water Inlet Tube Assembly |
|
$ 71.00 | |||||
| 8 | 2302758 | Seal Gasket |
|
- | |||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 29.84 | ||||
| 10 | 2307651 | Valve, Solenoid |
|
- | |||||
| 12 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 13 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 14 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 6.80 | |||||
| 15 | WP488366 | Clamp, Nylon Valve (Replaces: 2208136) |
|
$ 10.73 | |||||
| 16 | 488946 | Clamp, Tube |
|
$ 19.32 | |||||
| 17 | W10460127 | Tube, Water Inlet (Replaces: 2259417) |
|
$ 187.43 | |||||
| 18 | 2257538 | Cover |
|
- | |||||
| 19 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 20 | WPW10122550 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: 2212351) |
|
$ 195.88 | |||||
| 22 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 48.38 | |||||
| 23 | 626753 | Ejector (Replaces: 2212320) |
|
$ 13.18 | |||||
| 24 | W10297245 | Ice Striper (Replaces: 2212318) |
|
$ 68.97 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 26 | WP2315522 | Retainer, Thermostat (2) (Replaces: 2315522) |
|
$ 10.44 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 103.18 | |||||
| 28 | 8533917 | Screw |
|
$ 12.64 | |||||
| 29 | 2310183 | Wire Assembly, (water Valve) |
|
- | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 31 | W10504752 | Cover, Icemaker (Replaces: 2317039) |
|
$ 81.70 | |||||
| 32 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 7.70 | ||||
| 35 | W10190935 | Module Assembly (includes Items 21 & 41) (Replaces: 626680) |
|
Immediately | $ 122.65 | ||||
| 41 | 489136 | Screw, (2) |
|
$ 9.72 | |||||
| 42 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 43 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 44 | 2300167 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | 2320560 | Ice Container Assembly |
|
- | |||||
| 100 | 8537055 | Cleaner, Stainless Steel |
|
- | |||||
| 100 | WPW10277449 | Complete Icemaker Assembly (Replaces: 2320637) |
|
$ 248.57 |
