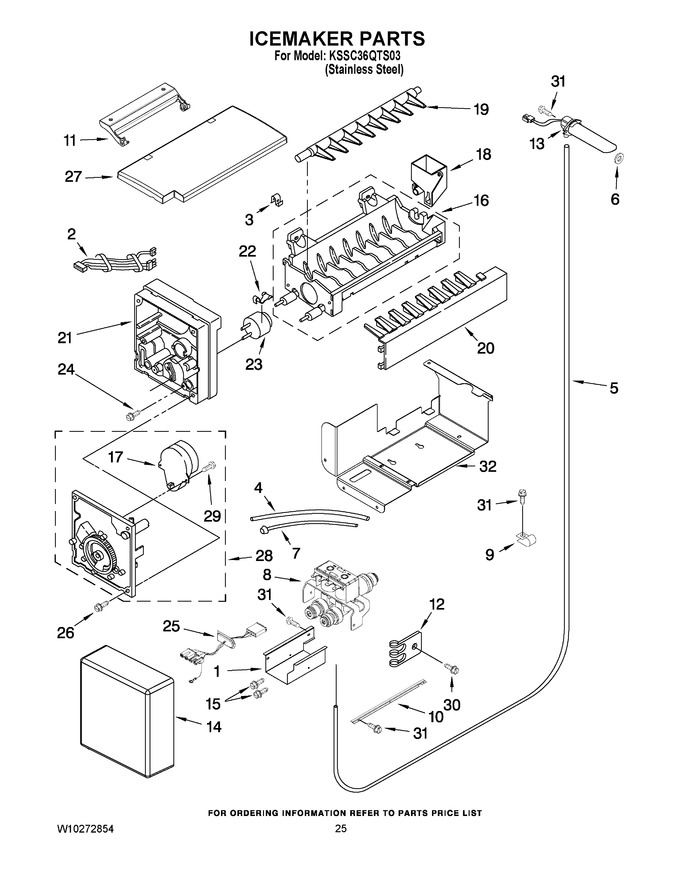

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320599 | Shield, Valve |
|
- | |||||
| 2 | 2310192 | Wire Assembly, Icemaker |
|
- | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | 2325170 | Tube, Filter Inlet |
|
$ 34.91 | |||||
| 5 | 2320658 | Water Tube |
|
$ 71.00 | |||||
| 6 | 2302758 | Seal Gasket |
|
- | |||||
| 7 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
$ 29.84 | |||||
| 8 | WPW10159843 | Valve, Solenoid (Replaces: W10159843) |
|
Immediately | $ 303.00 | ||||
| 9 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 10 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 11 | WP2198641 | Bracket, Ice Maker Cover (Replaces: 2198641) |
|
$ 6.80 | |||||
| 12 | WP488366 | Clamp, Nylon Valve (Replaces: 2305274) |
|
$ 10.73 | |||||
| 13 | W11565275 | Tube, Water Inlet (Replaces: W10174395) |
|
$ 61.10 | |||||
| 14 | 2221232 | Cover |
|
- | |||||
| 15 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 16 | WPW10122550 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122550) |
|
$ 195.88 | |||||
| 18 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 48.38 | |||||
| 19 | 626753 | Ejector (Replaces: 2212320) |
|
$ 13.18 | |||||
| 20 | W10297245 | Ice Striper (Replaces: 2212318) |
|
$ 68.97 | |||||
| 21 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 22 | WP2315522 | Retainer, Thermostat (2) (Replaces: 2315522) |
|
$ 10.44 | |||||
| 23 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 103.18 | |||||
| 24 | 8533917 | Screw |
|
$ 12.64 | |||||
| 25 | W10139199 | Wire Assembly |
|
$ 131.21 | |||||
| 26 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 27 | W10504752 | Cover, Icemaker (Replaces: 2317039) |
|
$ 81.70 | |||||
| 28 | W10190935 | Module Assembly (includes Items 17 & 29) (Replaces: 626680) |
|
Immediately | $ 122.65 | ||||
| 29 | 489136 | Screw, (2) |
|
$ 9.72 | |||||
| 30 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 31 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 32 | 2300167 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | WPW10277449 | Complete Icemaker Assembly (Replaces: W10190970) |
|
$ 248.57 | |||||
| NI | 8537055 | Cleaner, Stainless Steel |
|
- | |||||
| NI | WPW10519441 | Ice Container Assembly (Replaces: W10134769) |
|
$ 329.23 | |||||
| NI | W10129081 | Handle Kit For Previous Architect Series (stainless) |
|
$ 229.27 |
