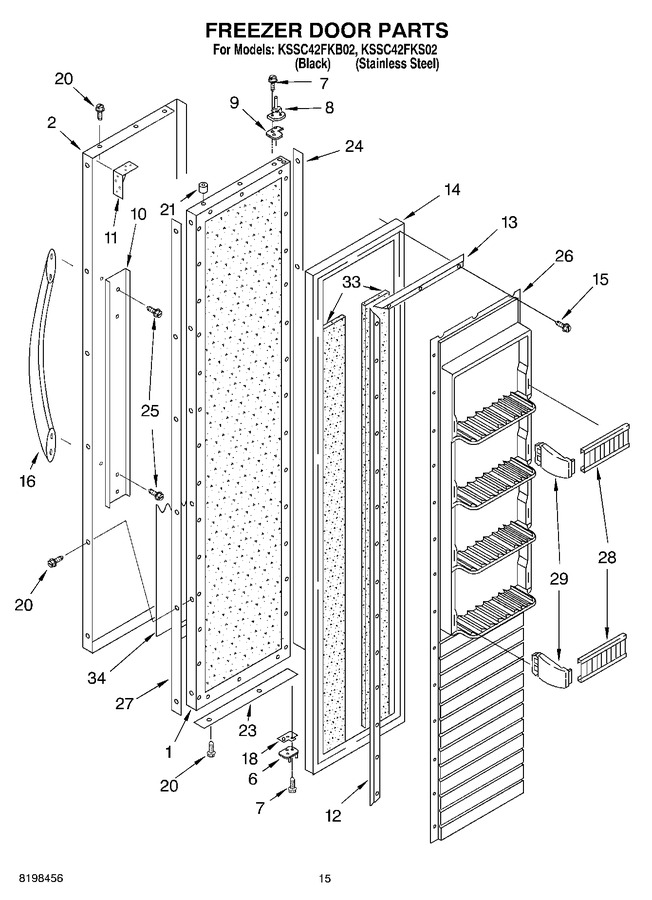

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259163		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2006775		Skin, Door (stainless Steel)		Appelez-nous	-
2	2209100B		Skin, Door (black)		Appelez-nous	-
6	W11752085		Hinge, Bottom   (Replaces: 2256390)				$ 56.76
7	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
8	W11724512		Hinge, Top   (Replaces: 2256388)				$ 281.25
9	2256381		Spacer-door, Top				$ 24.49
10	2209202		Plate, Door Handle		Appelez-nous	-
11	2258951		Brace, Door-corner				$ 33.35
12	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
13	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
14	2188496A		Door Gasket, Magnetic   (Replaces: 2188496)				$ 314.46
15	W11624204		Screw (34)   (Replaces: 486194)				$ 13.25
16	2209095B		Handle, Door (black)		Appelez-nous	-
16	2005290		Handle, Door (stainless Steel)				$ 130.36
18	2257637		Door, Spacer				$ 15.45
20	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.28
20	W10851443		Screw (black)   (Replaces: 8281252)			Immediately	$ 7.32
21	2005433		Spacer, Top				$ 21.00
23	2004932		Spacer, Door Bottom		Appelez-nous	-
24	2005030		Spacer, Hinge Side		Appelez-nous	-
25	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47
26	2209031		Panel, Interior Door		Appelez-nous	-
27	2221012		Spacer, Handle Side		Appelez-nous	-
28	2188515		Shelf Bin		Appelez-nous	-
29	2209134		Trim, End Cap (right Side)				$ 10.05
29	2208954		Trim, Endcap (left Side)				$ 5.84
33	2005610		Seal		Appelez-nous	-
34	2005325		Filler, Door		Appelez-nous	-
