SELECT A DIAGRAM

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts

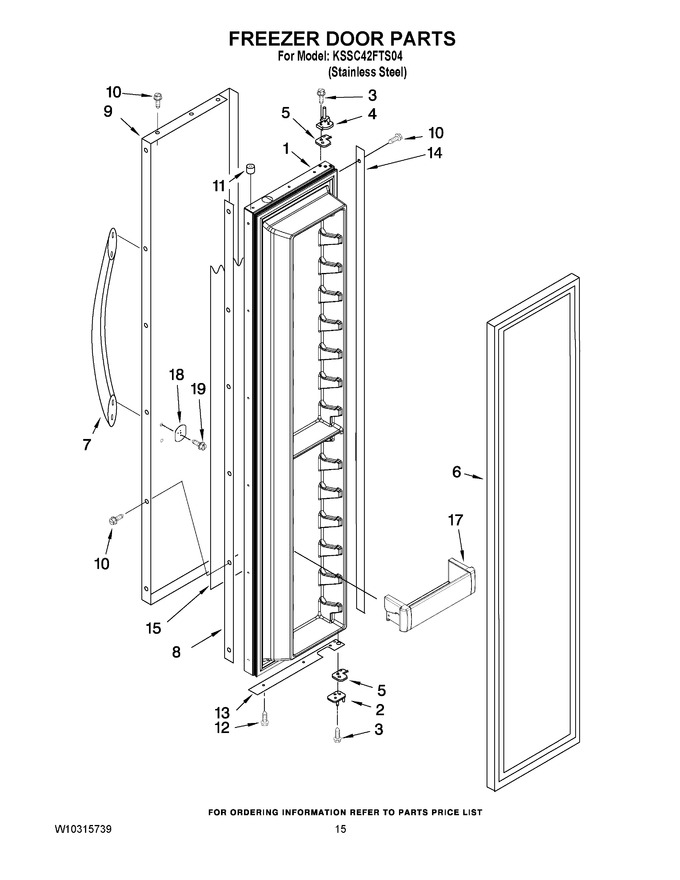

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10193486		Freezer Door (includes No.13)		Appelez-nous	-
2	W11752085		Hinge, Bottom   (Replaces: 2302879)				$ 56.76
3	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
4	W11724512		Hinge, Top   (Replaces: 2266854)				$ 281.25
5	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 117.33
6	WP2266905		Door Gasket, Magnetic   (Replaces: 2222814)				$ 296.69
7	WP2316868		Handle, Door   (Replaces: 2316868)			Immediately	$ 253.29
8	2309056		Spacer, Door-skin (handle Side)		Appelez-nous	-
9	2307756		Skin, Door		Appelez-nous	-
10	WP8281250		Screw Stainless Steel   (Replaces: 8281250)				$ 10.28
11	2005433		Spacer, Door-skin (top)				$ 21.00
12	W10759522		Screw   (Replaces: 488568)				$ 7.42
13	2004932		Spacer, Door-skin (bottom)		Appelez-nous	-
14	W10142296		Spacer, Door-skin (hinge Side)		Appelez-nous	-
15	2005325		Filler, Door		Appelez-nous	-
17	W10323602		Bin, Door (6)   (Replaces: 2222776)				$ 88.23
18	W10127710		Plate, Door-handle			Immediately	$ 23.35
19	WP308544		Screw   (Replaces: 308544)			Immediately	$ 7.47

    View Diagram in Separate Window       Print Part List
