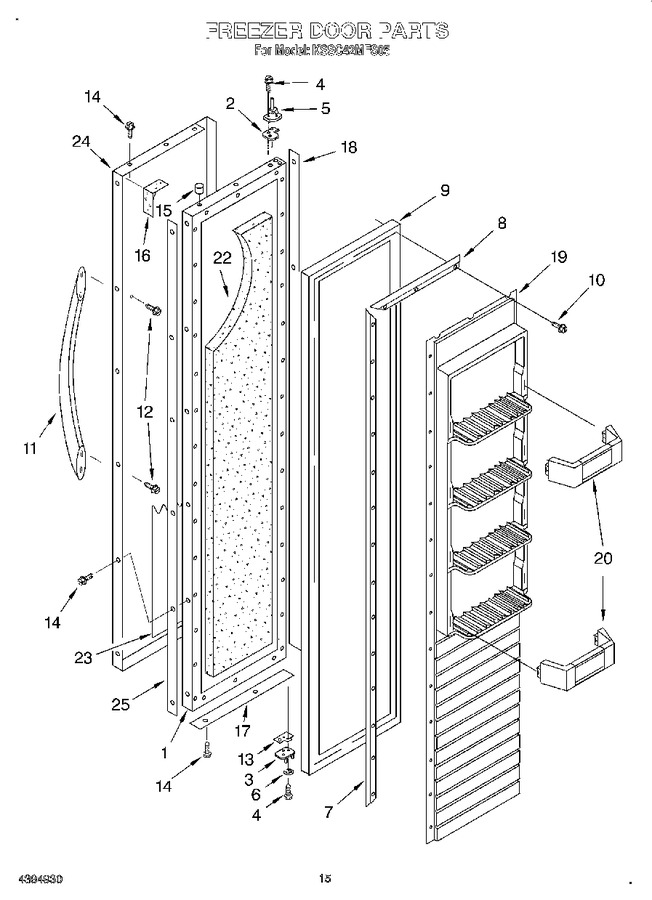

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003877		Freezer Door Panel (includes Insulation)		Appelez-nous	-
2	2004520		Spacer-door, Top		Appelez-nous	-
3	2004524		Hinge, Bottom		Appelez-nous	-
4	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
5	2005329		Hinge, Top		Appelez-nous	-
6	2004881		Retaining Ring, Door-closure		Appelez-nous	-
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112540		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188318A		Door Gasket, Magnetic   (Replaces: 2000879)				$ 315.54
10	W11624204		Screw (34)   (Replaces: 486194)				$ 13.25
11	2005290		Handle, Door				$ 130.36
12	WP3351614		Screw   (Replaces: 90864)			Immediately	$ 6.57
13	2004549		Door, Spacer		Appelez-nous	-
14	WP488729		Screw   (Replaces: 487052)			Immediately	$ 7.45
15	2005433		Spacer, Top				$ 21.00
16	2004447		Brace, Door Corner		Appelez-nous	-
17	2004932		Spacer, Door Skin		Appelez-nous	-
18	2005030		Spacer, Hinge Side		Appelez-nous	-
19	2000178		Panel, Interior Door		Appelez-nous	-
20	WP2003128		Shelf Bin (4)   (Replaces: 2003128)				$ 204.52
22	2005057		Insulation, Encapsulated		Appelez-nous	-
23	2005325		Filler, Door		Appelez-nous	-
24	2005288		Door Skin		Appelez-nous	-
25	2005330		Spacer, Handle Side		Appelez-nous	-
