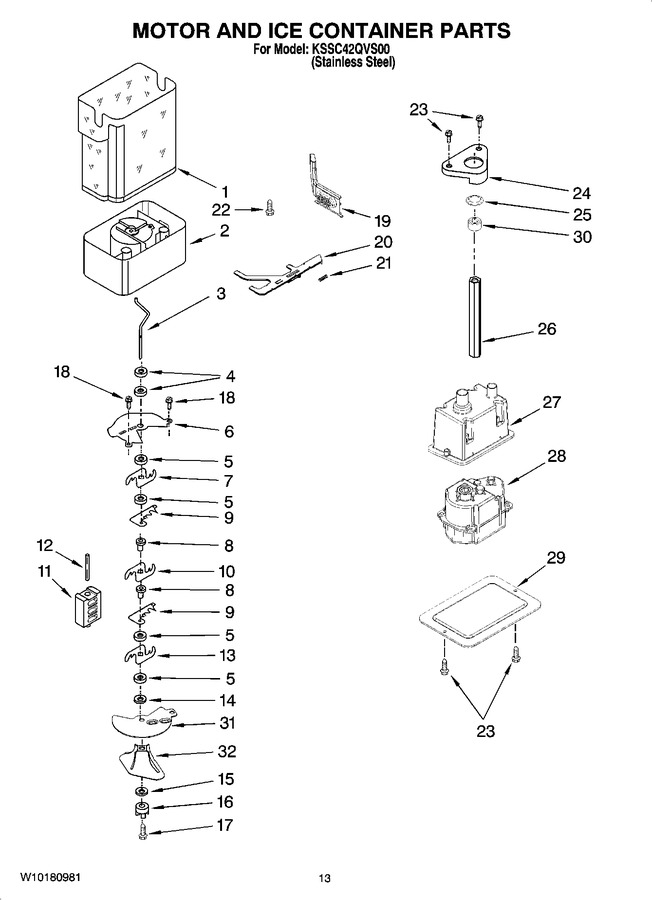

09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2222965		Ice Bin   (Replaces: 2222965)				$ 204.71
2	WPW10134774		Crusher Bin   (Replaces: W10134774)				$ 141.38
3	W10852517		Auger   (Replaces: W10140642)				$ 140.18
4	2258220		Washer, Auger				$ 8.02
5	WP1119007		Spacer, Flat (6)   (Replaces: 1119007)				$ 13.29
6	2317248		Cover, Crusher		Appelez-nous	-
7	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 81.90
8	WP1119005		Spacer, Step (2)   (Replaces: 1119005)				$ 10.57
9	2257020		Blade, Fixed				$ 59.91
10	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 81.90
11	2317239		Block, Blade				$ 10.32
12	489229		Roll Pin				$ 43.62
13	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 81.78
14	489235		Washer, Plain				$ 8.05
15	WP2198661		Washer, Coupling   (Replaces: 2198661)				$ 10.31
16	W11629923		Coupling, Top   (Replaces: 2188918)				$ 31.78
17	WP8281164		Screw   (Replaces: 8281164)				$ 10.20
18	WP3400065		Screw   (Replaces: 3400065)			Immediately	$ 7.36
19	WP2252265		Button, Bin   (Replaces: 2252265)				$ 41.89
20	W10134783		Latch, Bin				$ 94.65
21	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 6.80
22	2198671		Screw (2)				$ 9.83
23	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.63
24	WP2188919		Holder   (Replaces: 2188919)				$ 6.80
25	WP2198628		Seal   (Replaces: 2198628)			Immediately	$ 11.31
26	W11841865		Drive Shaft   (Replaces: 2318030)			Immediately	$ 103.73
27	W11404931		Enclosure, Motor   (Replaces: 2318011)			Immediately	$ 61.66
28	2315546		Dispenser, Motor		Appelez-nous	-
29	2318028		Cover				$ 97.01
30	WP2315559		Sleeve, Coupling   (Replaces: 2315559)				$ 76.87
31	2317250		Divider, Chamber				$ 32.82
32	2317243		Wiper				$ 84.91
