SELECT A DIAGRAM

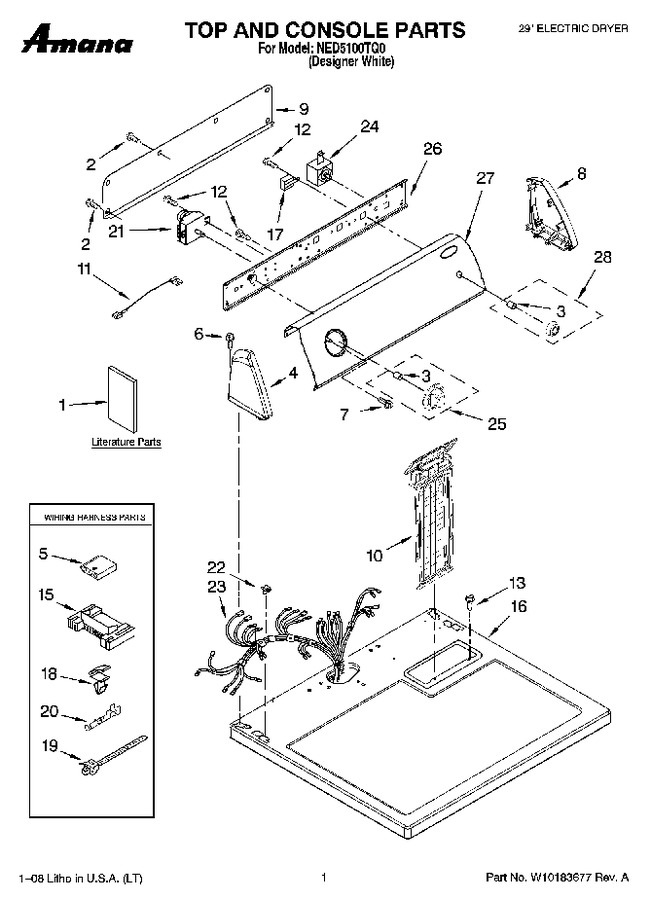

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8576793		Wiring Diagram		Appelez-nous	-
1	W10150620		Guide, Use & Care		Appelez-nous	-
1	W10150612		Instructions, Installation		Appelez-nous	-
1	W10150656		Sheet, Cycle Feature		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
3	WP8536939		Spring-clip Knob   (Replaces: 8536939)			Immediately	$ 7.38
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	3936144		Connector				$ 19.10
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
10	W10874409		Screen, Lint   (Replaces: 8558467)			Immediately	$ 60.31
11	3393815		Wire, Jumper		Appelez-nous	-
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
15	3395683		Connector, Motor			Immediately	$ 49.01
16	8557930		Top		Appelez-nous	-
17	WP694419		Mini-buzzer   (Replaces: 694419)				$ 120.65
18	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.36
19	3391249		Tie, Cable		Appelez-nous	-
20	WP94614		Terminal   (Replaces: 94614)				$ 7.25
21	WP8299781		Timer, 60 Hz.   (Replaces: 8299781)			Immediately	$ 342.50
22	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 6.98
23	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 251.39
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
25	W10110048		Timer Knob Assembly		Appelez-nous	-
26	8271418		Bracket, Control				$ 57.15
27	W10182636		Panel, Control		Appelez-nous	-
28	WPW10110049		Knob, Push-to-start   (Replaces: W10110049)				$ 47.57

    View Diagram in Separate Window       Print Part List
