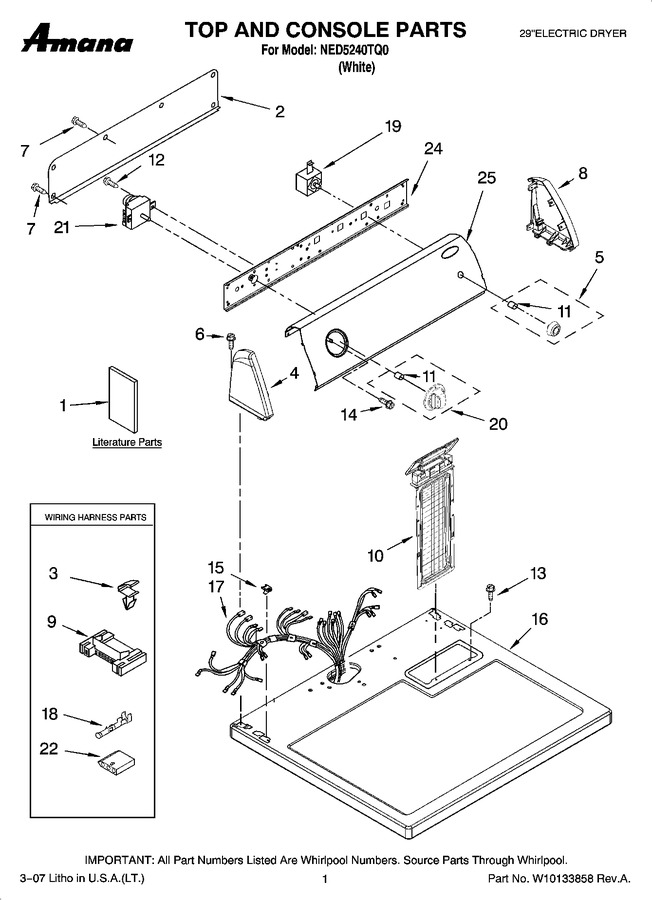

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10089173		Sheet, Cycle Feature		Appelez-nous	-
1	8576793		Wiring Diagram		Appelez-nous	-
1	W10088771		Use & Care Guide		Appelez-nous	-
1	W10088970		Installation, Installation		Appelez-nous	-
2	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
3	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.36
4	8271365		Cap, End (l.h.)		Appelez-nous	-
5	8271365		White		Appelez-nous	-
5	WPW10110049		Knob, Push-to-start   (Replaces: W10110049)				$ 47.57
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	3395683		Housing, Connector (motor)			Immediately	$ 49.01
10	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 49.17
11	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
15	WP357213		Nut-push-in (2)   (Replaces: 357213)				$ 6.98
16	8557930		Top		Appelez-nous	-
17	WPW10450292		Harness, Wiring   (Replaces: 8576500)				$ 251.39
18	WP94614		Terminal   (Replaces: 94614)				$ 7.25
19	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
20	W10110048		Timer-knob		Appelez-nous	-
21	WP8299778		Timer, 60 Hz.   (Replaces: 8299778)			Immediately	$ 242.93
22	3936144		Connector				$ 19.10
24	8271418		Bracket, Control				$ 57.15
25	W10086672		Panel Control		Appelez-nous	-
