SELECT A DIAGRAM

01 - Top And Console Parts

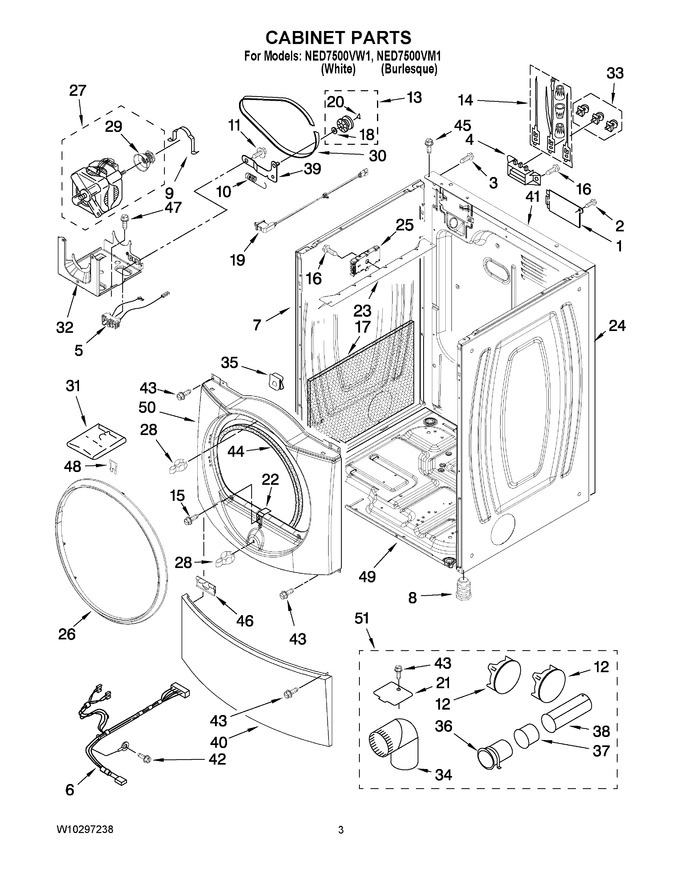

02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119283		Cover, Terminal Block   (Replaces: 8576583)				$ 121.29
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.43
3	W10850756		Screw, 10-32 X 5/8 (ground)   (Replaces: 8533974)				$ 7.38
4	WP3397659		Block Terminal   (Replaces: 3397659)				$ 21.75
5	WPW10411937		Switch, Broken Belt   (Replaces: W10246525)			Immediately	$ 32.45
6	W10242902		Harness, Digital Interface		Appelez-nous	-
7	W11233548		Panel, Side (l.h.) (white)   (Replaces: W10192435)				$ 235.20
7	W10192442		Panel, Side (l.h.) (burlesque)		Appelez-nous	-
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 23.22
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 7.76
12	WPW10404617		Plug, Multivent (burlesque)   (Replaces: W10110871)				$ 68.02
12	WPW10404617		Plug, Multivent (white)   (Replaces: 49252)				$ 68.02
13	279640		Pulley Assembly   (Replaces: 3388672)			Immediately	$ 29.26
14	279318		Terminal, Brass & Tinned (3) (include, Item. 33 )			Immediately	$ 95.44
15	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.08
16	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
17	W10123956		Sound Panel		Appelez-nous	-
18	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 6.80
19	W10128087		Assembly, Door Switch				$ 85.98
20	WPW10512946		Tri- Ring   (Replaces: 690997)			Immediately	$ 8.71
21	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.47
22	8529053		Ramp, Door				$ 51.37
23	WP8563727		Bracket, Control   (Replaces: 8563727)				$ 161.72
24	W10192453		Panel, Side (r.h.) (burlesque)		Appelez-nous	-
24	W11233548		Panel, Side (r.h.) (white)   (Replaces: W10192446)				$ 235.20
25	W10174745		Control Board				$ 307.22
26	W10181832		Assembly, Trim-ring (include, Item. 48 )				$ 137.33
27	279787		Motor Assembly 60 Hz.   (Replaces: 8538263)			Immediately	$ 222.14
28	279570		Strike, Door (2)   (Replaces: 696144)			Immediately	$ 8.00
29	W10837625		Pulley 60 Hz.   (Replaces: 8578220)			Immediately	$ 11.49
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	8541503		Kit, Stack Assembly			Immediately	$ 42.97
32	W11481730		Bracket, Motor   (Replaces: W10242878)			Immediately	$ 85.36
33	279393		Terminal Block Screw Kit (for Terminal Block)			Immediately	$ 50.09
34	WPW10416072		4`` - 90 Elbow   (Replaces: 49026)				$ 25.34
35	62825		Clip, S-type (3)				$ 8.11
36	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 86.36
37	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 74.61
38	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 83.92
39	W10837240		Idler Bracket   (Replaces: 3388674)			Immediately	$ 32.20
40	W10246274		Panel, Toe (burlesque)		Appelez-nous	-
40	W10246269		Panel, Toe (white)				$ 89.75
41	W10244141		Panel, Rear		Appelez-nous	-
42	WP693995		Screw, Ground   (Replaces: 693995)			Immediately	$ 6.80
43	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP308685		Screw, 10-16x1/2   (Replaces: 3393008)			Immediately	$ 7.08
46	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 19.95
47	WP681414		Screw, 10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.62
48	W10112671		Trim-clip Metal				$ 12.31
49	W10273475		Base, Cabinet		Appelez-nous	-
50	W10180423		Front Panel (includes Illus. 44) (white)				$ 139.69
50	W10180428		Front Panel (includes Illus. 44) (burlesque)		Appelez-nous	-
51	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (burlesque)   (Replaces: 280189)			Immediately	$ 76.75
51	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.75
NI	49621		Foot - Optional (extended Length Package Of 2 (not Included)   (Replaces: 279810)			Immediately	$ 7.70
