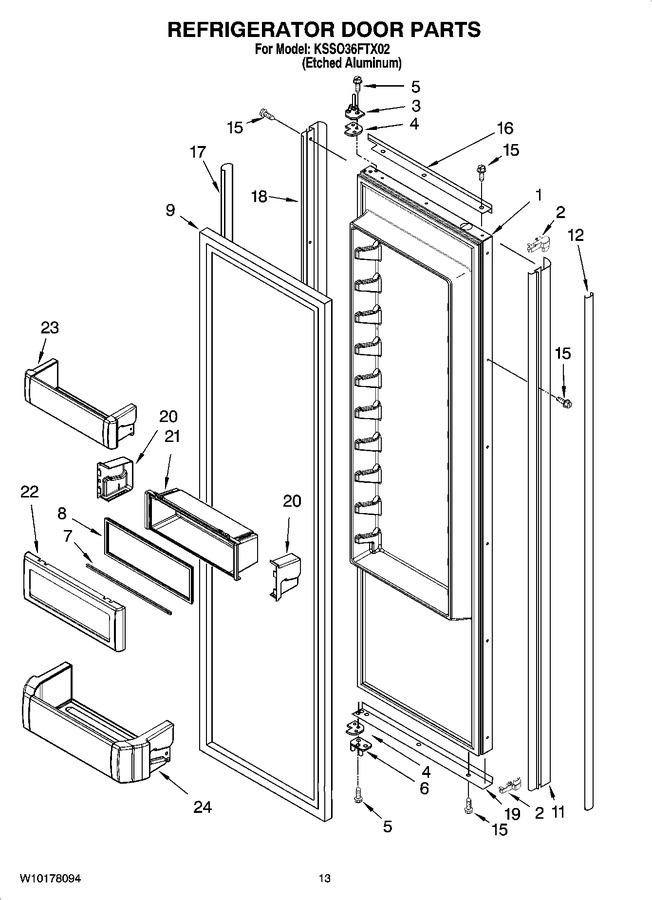

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252329		Refrigerator Door Panel (includes Item 9)		Appelez-nous	-
2	2207457		Trim, Cover				$ 51.41
3	2252295		Hinge Assembly, Top				$ 51.53
4	W11673500		Spacer-door   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
6	2252293		Hinge Assembly, Bottom		Appelez-nous	-
7	2222795		Rail, Lid				$ 75.70
8	WP2222981		Gasket, Utility Bin   (Replaces: 2222981)				$ 192.96
9	WP2266901		Door Gasket, Magnetic   (Replaces: 2222810)				$ 332.86
11	2309497S		Trim, Door (handle Side) (etched Aluminum)				$ 290.72
12	2314003S		Cover, Screw (handle Side) (etched Aluminum)				$ 157.17
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 10.28
16	2309485S		Trim, Door (top) (etched Aluminum)		Appelez-nous	-
17	2259448S		Cover, Screw (hinge Side) (etched Aluminum)				$ 161.55
18	2309498S		Trim, Door (hinge Side) (etched Aluminum)				$ 291.94
19	2309491S		Trim (bottom) (etched Aluminum)		Appelez-nous	-
20	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 7.74
20	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 7.74
21	WPW10323035		Bin, Utility Center   (Replaces: 2222921)				$ 76.44
22	WPW10131132		Door, Utility Bin   (Replaces: W10131132)				$ 68.23
23	W10323598		Door Shelf   (Replaces: 2222772)				$ 94.31
24	W10323746		Shelf, Gallon Door   (Replaces: 2222769)				$ 97.42
