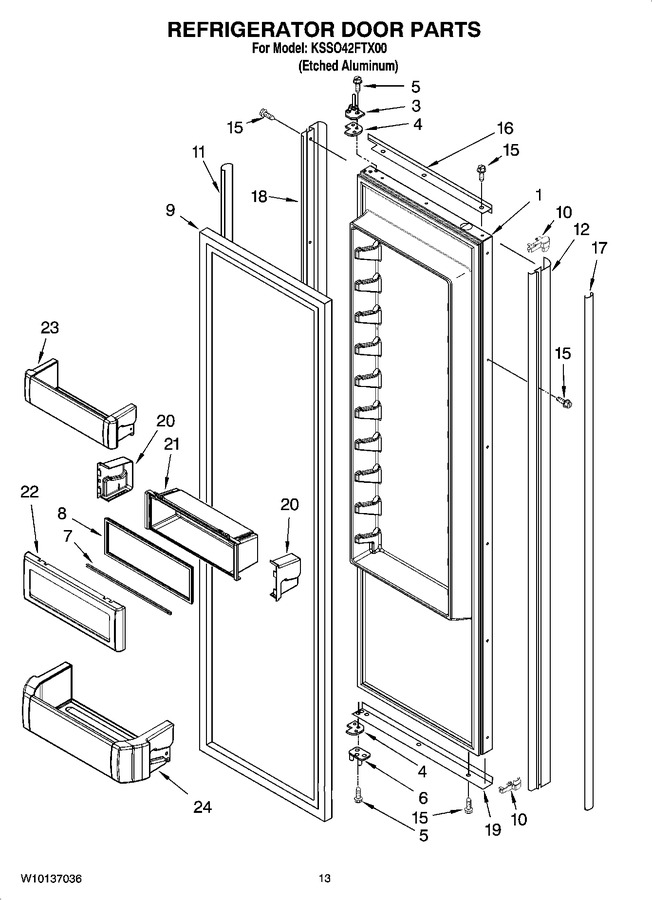

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2252330		Refrigerator Door (includes 9)		Appelez-nous	-
3	2252295		Hinge Assembly, Top				$ 51.53
4	W11673500		Spacer-door, Top & Bottom   (Replaces: 2316804)			Immediately	$ 117.33
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
6	2252293		Hinge Assembly, Bottom		Appelez-nous	-
7	W11448696		Rail, Lid   (Replaces: 2222796)				$ 155.64
8	W11448696		Gasket, Utility Bin   (Replaces: 2222982)				$ 155.64
9	WP2266902		Door Gasket, Magnetic   (Replaces: 2222811)				$ 297.27
10	2207457		Trim, Corner				$ 51.41
11	2259448S		Cover, Trim (hinge Side)				$ 161.55
12	2309497S		Trim-door (handle Side)				$ 290.72
15	WP8281250		Screw, 8-15 X .500 Stainless Steel   (Replaces: 8281250)				$ 10.28
16	2309486S		Trim-door, Top		Appelez-nous	-
17	2314003S		Cover, Trim (handle Side)				$ 157.17
18	2309498S		Trim-door (hinge Side)				$ 291.94
19	2309492S		Trim-door, Btm End Cap		Appelez-nous	-
20	WPW10323173		End Cap (left Side)   (Replaces: 2222920)				$ 7.74
20	WPW10323172		End Cap (right Side)   (Replaces: 2222919)				$ 7.74
21	W10323042		Bin, Utility (center)   (Replaces: 2222922)				$ 201.54
22	W11553221		Door, Utility Bin   (Replaces: 2257616)			Immediately	$ 62.68
23	W10323599		Bin, Door (3)   (Replaces: 2222773)				$ 131.95
24	W10323747		Bin, Door   (Replaces: 2222770)				$ 130.82
