SELECT A DIAGRAM

01 - Cabinet


02 - Cabinet Trim


03 - Freezer Liner


04 - Refrigerator Liner


05 - Refrigerator Control Panel


06 - Freezer Control Panel


07 - Refrigerator Shelf


08 - Freezer Shelf


09 - Top Grille And Unit Cover


10 - Refrigerator Door


11 - Freezer Door


12 - Upper Unit


13 - Lower Unit And Tube


14 - Airflow And Reservoir


15 - Icemaker, Literature

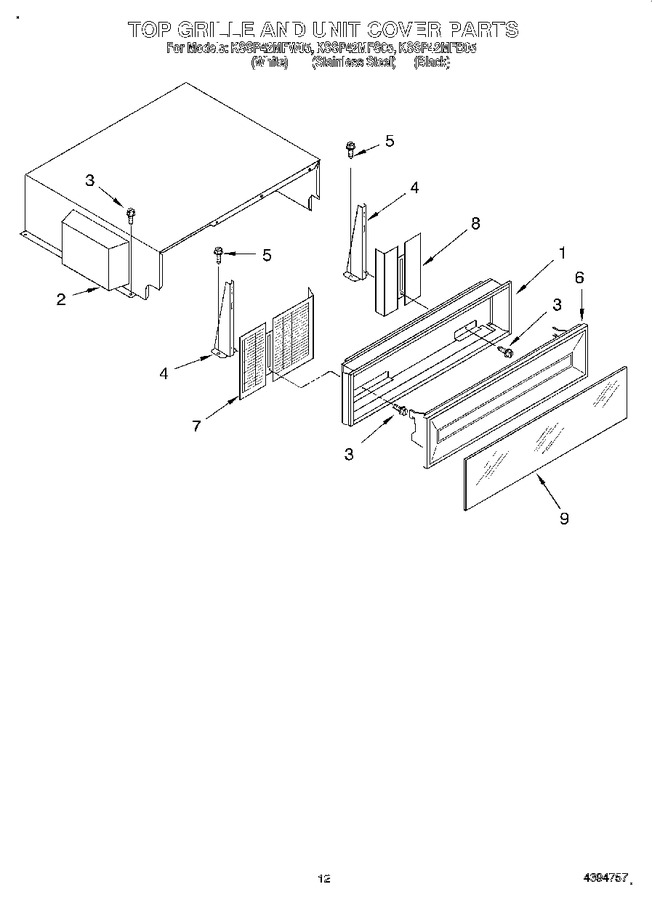

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2003717		Top Grille Assembly (white Models)		Appelez-nous	-
1	2003714		Top Grille Assembly (black Models)		Appelez-nous	-
1	2004956		Top Grille Assembly (stainless Steel)		Appelez-nous	-
2	2004946		Cover, Unit		Appelez-nous	-
3	W11624204		Screw   (Replaces: 486194)				$ 13.25
4	2002484		Grille, Bracket		Appelez-nous	-
5	WP8204624		Screw   (Replaces: 2001415)				$ 15.73
6	2003726		Decortive Panel Assembly (white Models)		Appelez-nous	-
6	2003723		Decortive Panel Assembly (black Models)		Appelez-nous	-
6	2004959		Decortive Panel Assembly (stainless Steel Models)		Appelez-nous	-
7	2003480		Guard, Compressor Wiring		Appelez-nous	-
8	2003482		Guard, Water Valve Wiring		Appelez-nous	-
9	4210802		Panel, Decorative (white Models)		Appelez-nous	-
9	4210610		Panel, Decorative (black Models)		Appelez-nous	-
9	4378757		Panel, Decorative (stainless Steel Models)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
